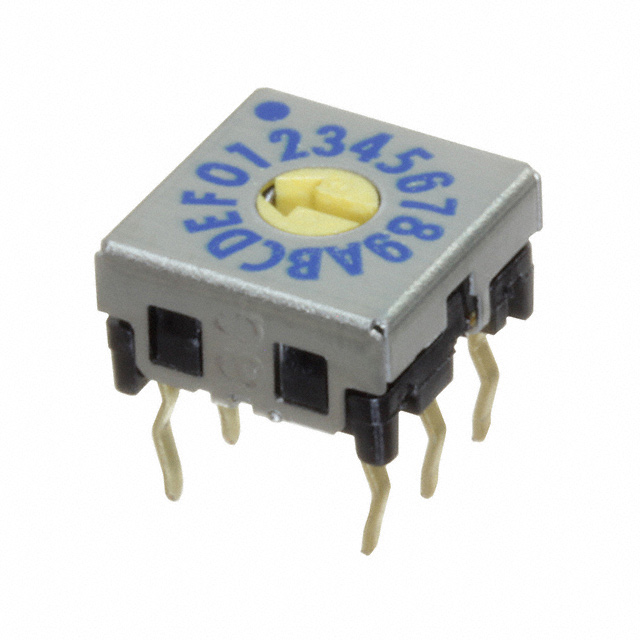

DRS7016 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH ROTARY DIP HEX 0.03A 15V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch | Pitch [x] | Mounting Type | Height Above Board | Height Above Board | Termination Style | Current Rating (Amps) | Contact Finish | Washable | Electrical Life | Features | Actuator Level | Actuator Type | Circuit | Voltage Rating | Mechanical Life | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | -25 °C | 85 °C | 0.1 in | Full | 2.54 mm | Through Hole | 0.161 " | 4.1 mm | PC Pin | 30 mA | Gold | 20000 Steps | Process Sealed | Flush Recessed | Rotary for Tool | Hexadecimal | 15 VDC | 20000 Cycles | 7.5 mm | 0.295 in | 16 |
