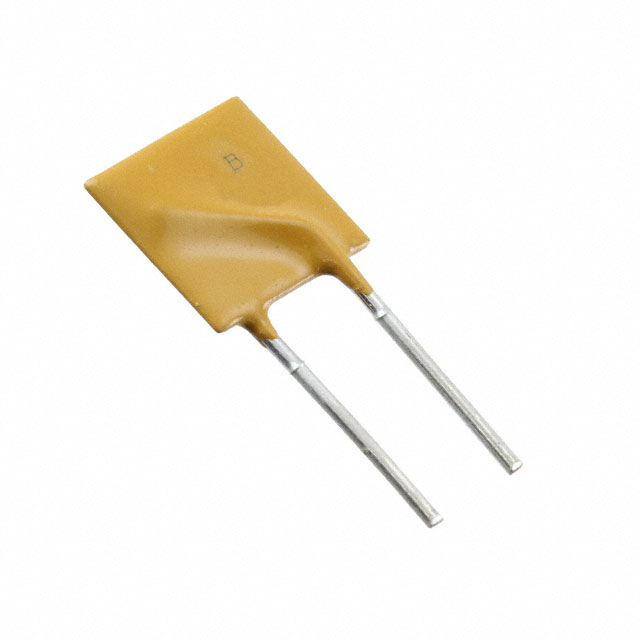

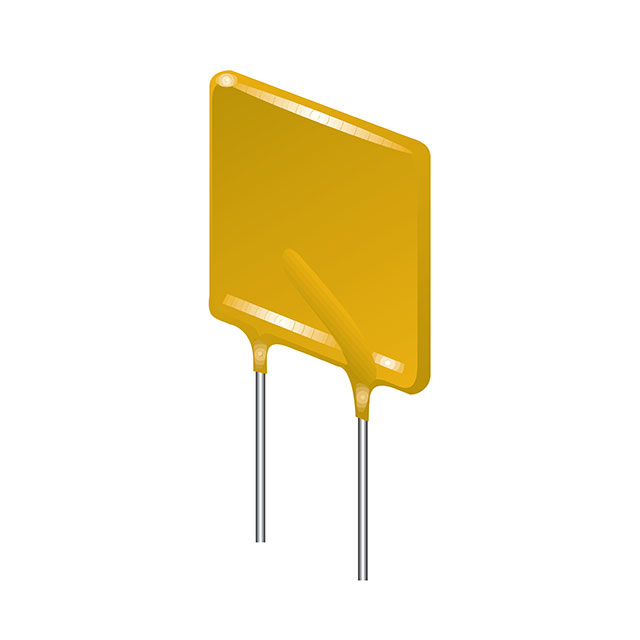

MF-RG Series

Catalog

PTC RESET FUSE 16V 6.5A RADIAL

Part	Resistance - Initial (Ri) (Min) [Min]	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Package / Case	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Time to Trip	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current - Hold (Ih) (Max)	Approval Agency	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Size / Dimension [x]	Size / Dimension [y]
Bourns Inc. MF-RG650-0	8.8 mOhms	AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	11.1 A	6.5 A	0.201 in	5.1 mm	24 mOhms	16 V	11.2 mm	0.118 in	0.441 in	3 mm	100 A	Polymeric	0.776 in	19.7 mm	Through Hole	3.5 s
Bourns Inc. MF-RG650-AP	8.8 mOhms	AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	11.1 A	6.5 A	0.201 in	5.1 mm	24 mOhms	16 V	11.2 mm	0.118 in	0.441 in	3 mm	100 A	Polymeric	0.776 in	19.7 mm	Through Hole	3.5 s
Bourns Inc. MF-RG500-AP	15 mOhms		85 °C	-40 C		Disc Radial	8.5 A	5 A	0.201 in	5.1 mm	34 mOhms	16 V	10.4 mm	0.118 in	0.409 in	3 mm	100 A	Polymeric			Through Hole	2 s	0.563 "	14.3 mm
Bourns Inc. MF-RG1000-AP	4 mOhms	AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	17 A		0.201 in	5.1 mm	10.2 mOhms	16 V	16.5 mm	0.118 in	0.65 in	3 mm	100 A	Polymeric	0.854 in		Through Hole	6 s			21.7 mm	10 A
Bourns Inc. MF-RG1000-2	4 mOhms	AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	17 A		0.201 in	5.1 mm	10.2 mOhms	16 V	16.5 mm	0.118 in	0.65 in	3 mm	100 A	Polymeric	0.854 in		Through Hole	6 s			21.7 mm	10 A
Bourns Inc. MF-RG1100-0	3 mOhms		85 °C	-40 C		Disc Radial	18.7 A	11 A	0.201 in	5.1 mm	10 mOhms	16 V	17.5 mm	0.118 in	0.689 in	3 mm	100 A	Polymeric	0.988 "	25.1 mm	Through Hole	15.2 s					CSA TUV UR
Bourns Inc. MF-RG400-AP-14	21 mOhms	AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	6.8 A	4 A	0.201 in	5.1 mm	60 mOhms	16 V	9.9 mm	0.118 in	0.39 "		100 A	Polymeric			Through Hole	1.7 s	12.8 mm				cUL cURus	0.504 "	3 mm
Bourns Inc. MF-RG800-2		AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	13.6 A	8 A	0.201 in	5.1 mm	17.5 mOhms	16 V	12.7 mm	0.118 in	0.5 "	3 mm	100 A	Polymeric			Through Hole	5 s								20.9 mm	0.823 in
Bourns Inc. MF-RG300-0	38 mOhms		85 °C	-40 C		Disc Radial	5.1 A	3 A	0.201 in	5.1 mm	97.5 mOhms	16 V	7.1 mm			3 mm	100 A	Polymeric			Through Hole	1 s	11 mm					0.433 in				0.28 "	0.118 "
Bourns Inc. MF-RG1100-2		AEC-Q200	85 °C	-40 C	Automotive	Disc Radial	18.7 A	11 A	0.201 in	5.1 mm	8.9 mOhms	16 V	17.5 mm	0.118 in	0.689 in	3 mm	100 A	Polymeric		26 mm	Through Hole	7 s						1.024 in
