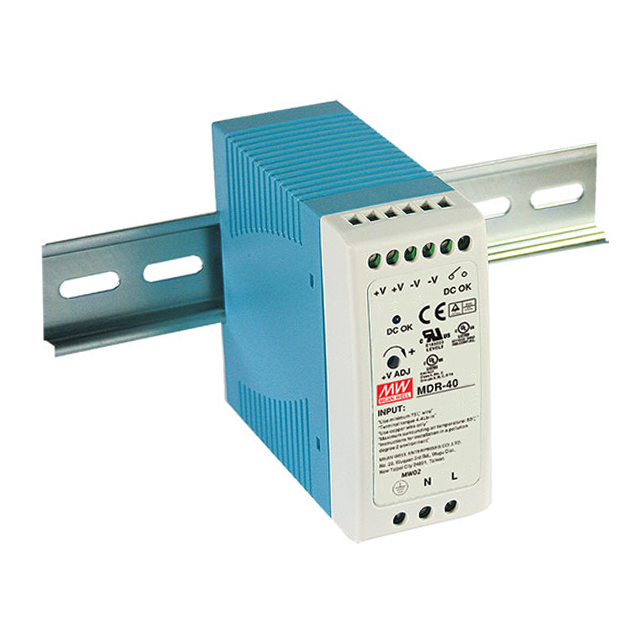

MDR-40 Series

Catalog

AC/DC DIN RAIL SUPPLY 24V 41W

Part	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Power (Watts)	DC Voltage - Input (Max) [Max]	Voltage - Isolation	Efficiency
MEAN WELL USA Inc. MDR-40-24	120 V	264 VAC	85 VAC	24 V	CB CE cULus cURus TUV	1.7 A	1	Adjustable Output Universal Input	Hazardous Locations Industrial ITE (Commercial)	70 °C	-20 °C	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	AC or DC	41 W	370 V	3000 V	88 %
MEAN WELL USA Inc. MDR-40-48	120 V	264 VAC	85 VAC	48 V	CB CE cULus cURus TUV	830 mA	1	Adjustable Output Universal Input	Hazardous Locations Industrial ITE (Commercial)	70 °C	-20 °C	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	AC or DC	40 W	370 V	3000 V	88 %
MEAN WELL USA Inc. MDR-40-12	120 V	264 VAC	85 VAC	12 V	CB CE cULus cURus TUV	3.33 A	1	Adjustable Output Universal Input	Hazardous Locations Industrial ITE (Commercial)	70 °C	-20 °C	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	AC or DC	40 W	370 V	3000 V	86 %
