TR9CY5000 Series

Catalog

AC/DC DESKTOP ADAPTER 36V 180W

Part	Cord Length	Cord Length	Applications	Input Connector	Form	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	No Load Power Consumption	Current - Output (Max)	Standard Number	Power (Watts)

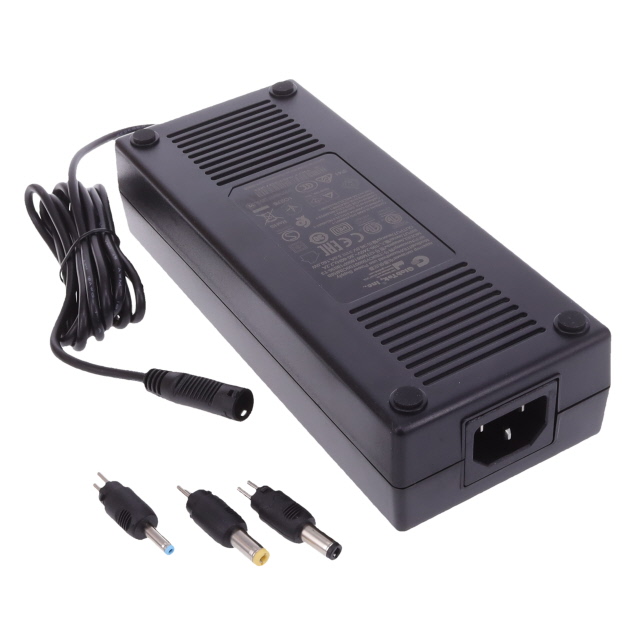

GlobTek, Inc. TR9CY5000T00CIMR6B	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	IEC 320-C14	Desktop (Class I)	40 °C	-10 °C	Cord (Sold Separately)	International	264 VAC	90 VAC	CoC Tier 1 Level VI	Barrel Plug Kit (1.3mm x 3.5mm	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	36 V	150 mW	5 A	60335-1 60601-1 60950-1 62368-1	180 W

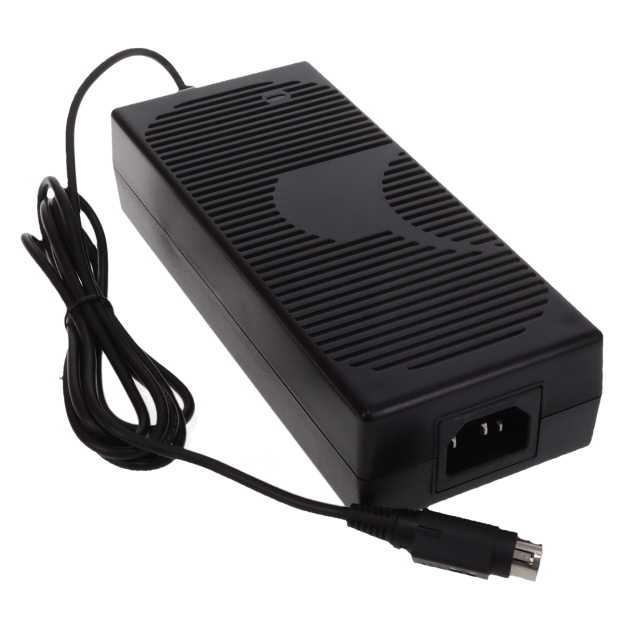

GlobTek, Inc. TR9CY5000YL4IMR6B	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	IEC 320-C14	Desktop (Class I)	40 °C	-10 °C	Cord (Sold Separately)	International	264 VAC	90 VAC	CoC Tier 1 Level VI	Power DIN 4 Pin	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	36 V	150 mW	5 A	60335-1 60601-1 60950-1 62368-1	180 W

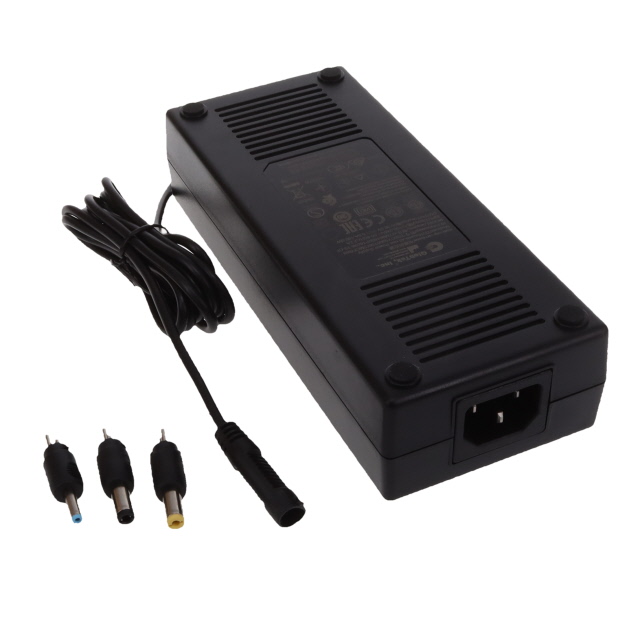

GlobTek, Inc. TR9CY5000T00CIMCFR6B	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	IEC 320-C14	Desktop (Class I)	40 °C	-10 °C	Cord (Sold Separately)	International	264 VAC	90 VAC	CoC Tier 1 Level VI	Barrel Plug Kit (1.3mm x 3.5mm	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	36 V	150 mW	5 A	60335-1 60601-1 60950-1 62368-1	180 W
