SWF240 Series

Catalog

AC/DC CONVERTER 36V 240W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Type	Efficiency	Power (Watts)	Current - Output 1	Applications	Number of Outputs	Voltage - Output 1 [custom]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Isolation	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]

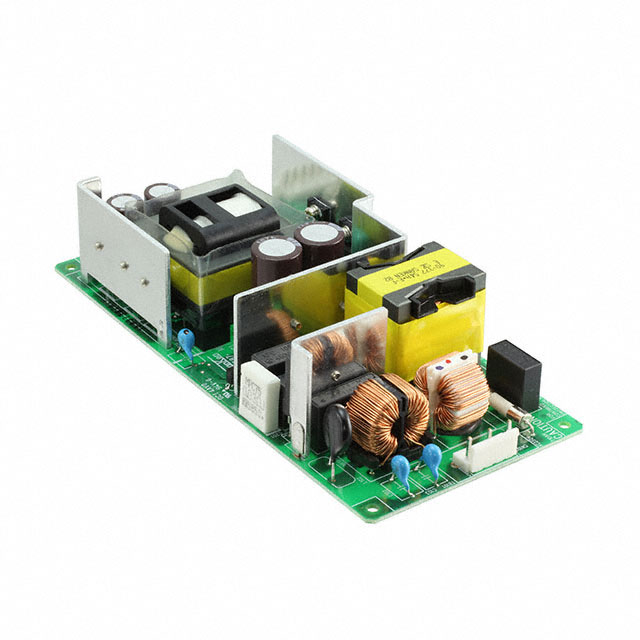

Sanken Electric USA Inc. SWF240P-36	70 °C	-10 °C	Adjustable Output Universal Input	Chassis Mount	Open Frame	92 %	240 Watts	6.7 A	ITE (Commercial)	1	36 V	42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	CE	3000 V
Sanken Electric USA Inc. SWF240P-24-R	70 °C	-10 °C		Chassis Mount	Open Frame	92 %	240 Watts	10 A	ITE (Commercial)	1		42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	CE cURus	3000 V	24 V
Sanken Electric USA Inc. SWF240P-48-L-R-T	70 °C	-10 °C	Adjustable Output PFC Remote On/Off Universal Input	Chassis Mount	Enclosed	92 %	240 Watts	5 A	ITE (Commercial)	1				2.32 "	212 mm	8.35 in	3.86 "	CE	3000 V	48 V	59 mm	98 mm
Sanken Electric USA Inc. SWF240P-24-L	70 °C	-10 °C	Adjustable Output Universal Input	Chassis Mount	Open Frame	92 %	240 Watts	10 A	ITE (Commercial)	1		42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	CE cURus	3000 V	24 V
Sanken Electric USA Inc. SWF240P-24-LC-T	70 °C	-10 °C	Adjustable Output Universal Input	Chassis Mount	Open Frame	92 %	240 Watts	10 A	ITE (Commercial)	1		42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	CE cURus	3000 V	24 V

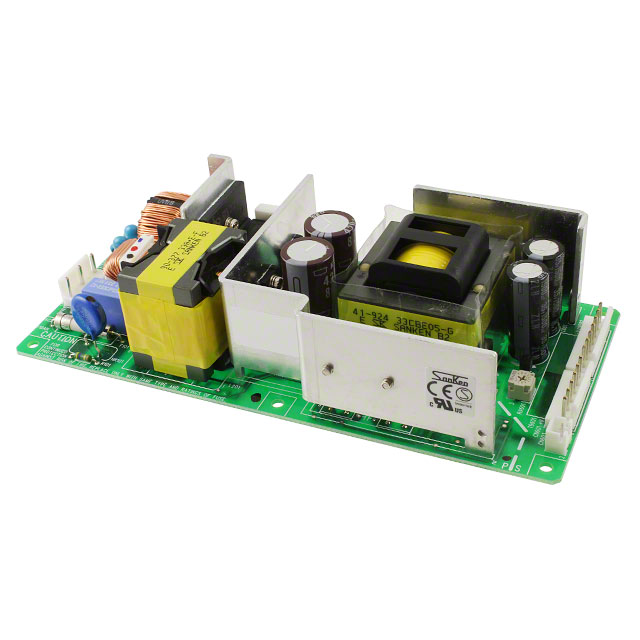

Sanken Electric USA Inc. SWF240P-24	70 °C	-10 °C	Adjustable Output Universal Input	Chassis Mount	Open Frame	92 %	240 Watts	10 A	ITE (Commercial)	1		42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	CE cURus	3000 V	24 V
Sanken Electric USA Inc. SWF240P-36-LC-R	70 °C	-10 °C	Adjustable Output PFC Remote On/Off Universal Input	Chassis Mount	Enclosed	92 %	240 Watts	6.7 A	ITE (Commercial)	1	36 V			2.32 "	212 mm	8.35 in	3.86 "	CE	3000 V		59 mm	98 mm
Sanken Electric USA Inc. SWF240P-24-L-R-T	70 °C	-10 °C		Chassis Mount	Open Frame	92 %	240 Watts	10 A	ITE (Commercial)	1		42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	CE cURus	3000 V	24 V
Sanken Electric USA Inc. SWF240P-48-L-R	70 °C	-10 °C	Adjustable Output PFC Remote On/Off Universal Input	Chassis Mount	Enclosed	92 %	240 Watts	5 A	ITE (Commercial)	1				2.32 "	212 mm	8.35 in	3.86 "	CE	3000 V	48 V	59 mm	98 mm
Sanken Electric USA Inc. SWF240P-48-R	70 °C	-10 °C	Adjustable Output PFC Remote On/Off Universal Input	Chassis Mount	Open Frame	92 %	240 Watts	5 A	ITE (Commercial)	1				1.46 in	160 mm	6.3 in	2.95 "	CE	3000 V	48 V	37 mm	75 mm
