HDSP-K1 Series
Manufacturer: Broadcom Limited
Catalog

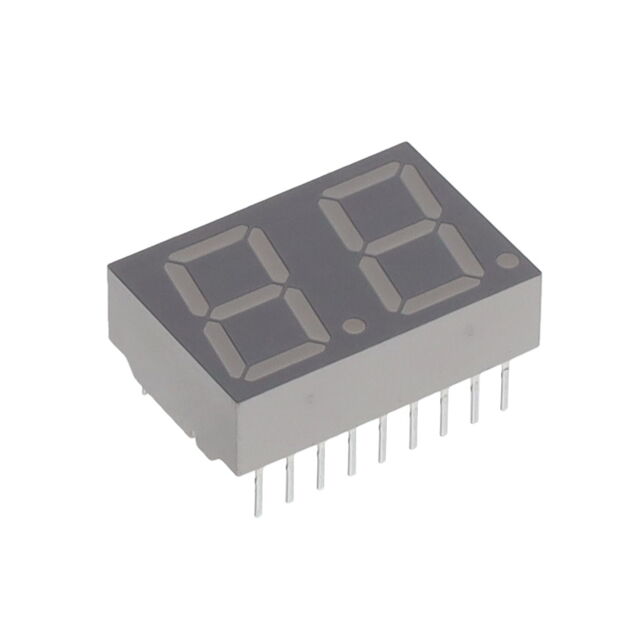

DISPLAY 7SEG 0.56" DBL RED 18DIP
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Package / Case | Package / Case | Wavelength - Peak | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Common Pin | Current - Test | Power Dissipation (Max) [Max] | Color | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 0.315 " | 0.99 in | 25.15 mm | 17.02 mm | 0.67 in | 8 mm | 15.24 mm | 0.6 in | 18-DIP | 645 nm | 4.2 mcd | 1.7 V | Common Cathode | 5 mA | 37 mW | Red | 2 | 0.56 in | 14.22 mm | 7-Segment |
