BA07 Series

Catalog

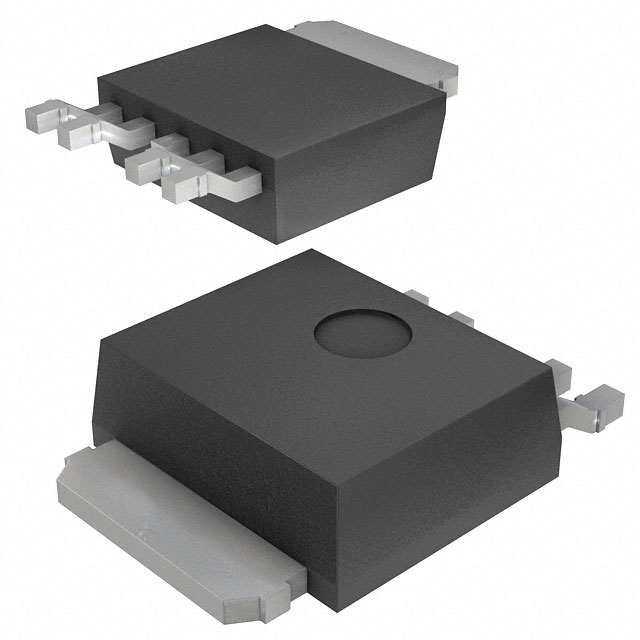

IC REG LINEAR 7V 1A TO252-5

Part	Package / Case	Mounting Type	Current - Output	Voltage - Output (Min/Fixed)	Output Configuration	Current - Supply (Max) [Max]	PSRR	Control Features	Current - Quiescent (Iq)	Supplier Device Package	Number of Regulators	Protection Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Rohm Semiconductor BA07CC0WFP-E2	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	Surface Mount	1 A	7 V	Positive	5 mA	55 dB	Enable	2.5 mA	TO-252-5	1	Over Current Over Temperature Over Voltage	25 V	125 °C	-40 C
Rohm Semiconductor BA07T	TO-220-3 Full Pack	Through Hole	1 A	7 V	Positive	5 mA	55 dB		2.5 mA	TO-220FP	1	Over Current Over Temperature Over Voltage	25 V	85 °C	-40 C
Rohm Semiconductor BA07CC0WT	TO-220-5 Full Pack	Through Hole	1 A	7 V	Positive	5 mA	55 dB	Enable	2.5 mA	TO-220FP-5	1	Over Current Over Temperature Over Voltage	25 V	125 °C	-40 C
Rohm Semiconductor BA07CC0T	TO-220-3 Full Pack	Through Hole	1 A	7 V	Positive	5 mA	55 dB		2.5 mA	TO-220FP	1	Over Current Over Temperature Over Voltage	25 V	125 °C	-40 C
Rohm Semiconductor BA07FP-E2	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount	1 A	7 V	Positive	5 mA	55 dB		2.5 mA	TO-252	1	Over Current Over Temperature Over Voltage	25 V	85 °C	-40 C
