BH16NG Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

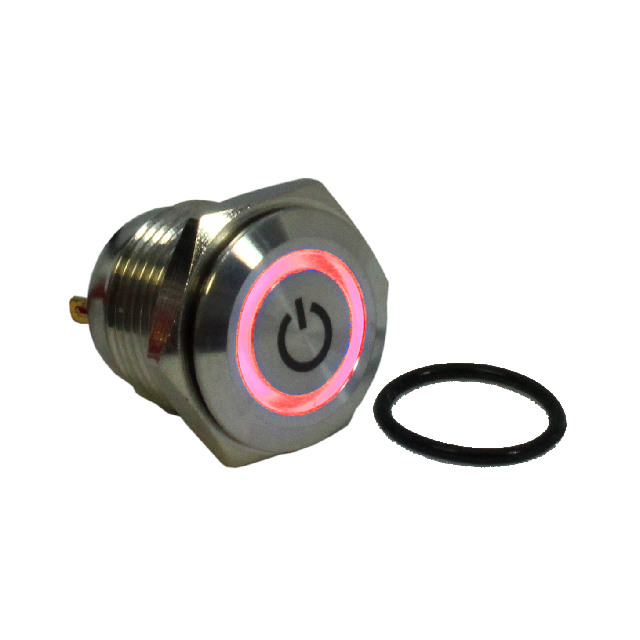

SWITCH PB SPST 1A 125V
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Termination Style | Switch Function | Circuit | Color - Actuator/Cap | Type | Mounting Type | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Features | Voltage Rating - AC | Actuator Type | Voltage Rating - DC | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 50000 Cycles | 55 °C | -25 °C | 1 A 2 A | IP67 - Dust Tight Waterproof | Solder Lug | Off-Mom | SPST | Silver | Anti-Vandal Illuminated | Panel Mount Front | No Marking | Green LED | 3.3 VDC | Stainless Steel | 125 V | Button Flush Round | 36 VDC | 16 mm |
 CIT Relay and Switch | 50000 Cycles | 55 °C | -25 °C | 1 A 2 A | IP67 - Dust Tight Waterproof | Solder Lug | Off-Mom | SPST | Silver | Anti-Vandal Illuminated | Panel Mount Front | No Marking | LED Red | 2.1 VDC | Stainless Steel | 125 V | Button Flush Round | 36 VDC | 16 mm |
