94654 Series

Catalog

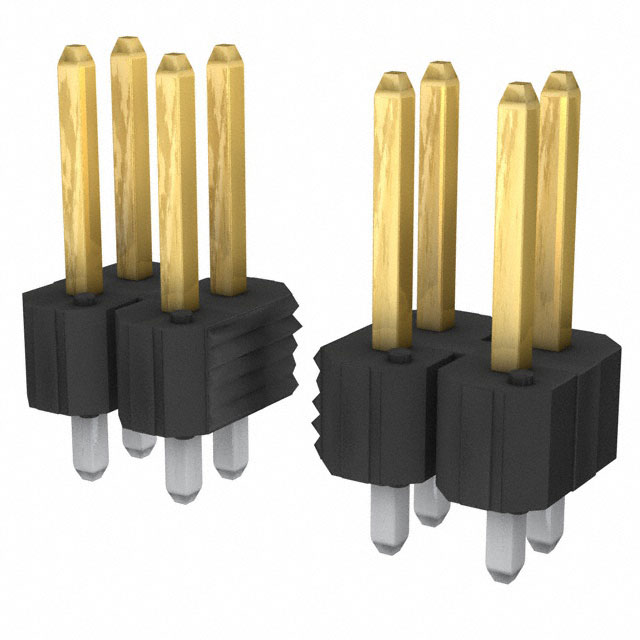

CONN HEADER VERT 50POS 2.54MM

Part	Contact Material	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Type	Mounting Type	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Number of Positions Loaded	Number of Positions	Termination	Number of Positions
Amphenol ICC (FCI) 94654-650H	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	50	Kinked Pin Solder
Amphenol ICC (FCI) 94654-160HLF	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	60	Kinked Pin Solder
Amphenol ICC (FCI) 94654-220H	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	15 µin	0.38 µm	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	20	Kinked Pin Solder
Amphenol ICC (FCI) 94654-110HLF	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10	Kinked Pin Solder
Amphenol ICC (FCI) 94654-118HLF	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	18	Kinked Pin Solder
Amphenol ICC (FCI) 94654-132HLF	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All		Kinked Pin Solder
Amphenol ICC (FCI) 94654-118H	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	18	Kinked Pin Solder
Amphenol ICC (FCI) 94654-220HLF	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	15 µin	0.38 µm	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All	20	Kinked Pin Solder
Amphenol ICC (FCI) 94654-116H	Phosphor Bronze	Header	0.23 in	5.84 mm	2	2.16 mm	0.085 in	Male Pin	Through Hole	Unshrouded	Gold or Gold GXT™	30 Áin	0.76 Ám	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Black	0.415 in	10.54 mm	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	All		Kinked Pin Solder	16
