2022 Series
Manufacturer: Curtis Industries
Beta
⌘K

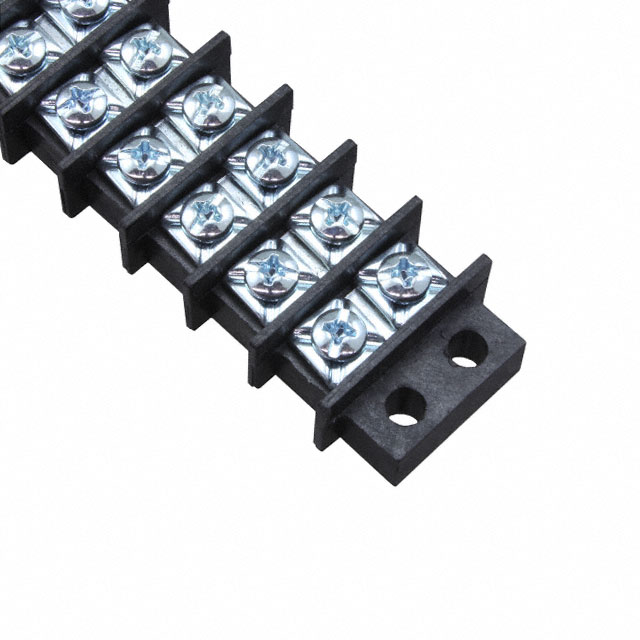

CONN BARRIER STRP 22CIRC 0.438"
| Part | Mounting Type | Operating Temperature | Material - Insulation | Material Flammability Rating | Terminal Screw Finish | Number of Rows [custom] | Number of Circuits | Current Rating (Amps) | Bottom Termination | Terminal Block Type | Top Termination | Pitch [x] | Pitch [x] | Wire Gauge [Max] | Wire Gauge [Min] | Number of Wire Entries | Features | Barrier Type | Terminal Screw Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel | 110 °C | Polyphenylene Oxide (PPO) | UL94 V-0 | Tin | 2 | 22 | 30 A | Closed | Barrier Block | Screws with Solder Lugs Single | 0.438 in | 11.12 mm | 22 AWG | 10 AWG | 44 | Flange | 2 Wall (Dual) | |
 Curtis Industries | Chassis Panel | 110 °C | Polyphenylene Oxide (PPO) | UL94 V-0 | 2 | 22 | 30 A | Closed | Barrier Block | Screws with Captive Plate | 0.438 in | 11.12 mm | 22 AWG | 10 AWG | 44 | Flange | 2 Wall (Dual) | Steel |
