L77TWB17 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 17P PNL MNT SLDR

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Dielectric Material	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Style	Flange Feature	Number of Rows [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Features	Contact Finish	Termination	Connector Type	Contact Type	Number of Positions [custom]	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L77TWB17W2SCSYRM84	Bronze	155 C	-55 C	150 VDC 300 VDC	Black	Thermoplastic	0.5 A 7.5 A	16 µin	0.41 µm	Panel Mount Through Hole	Combo D-Sub	4-40 Mating Side Female Screwlock	2	B DB	17W2	3	Board Lock Shielded	Gold	Solder	Receptacle Female Sockets	Coax Signal	15 Positions	17	2

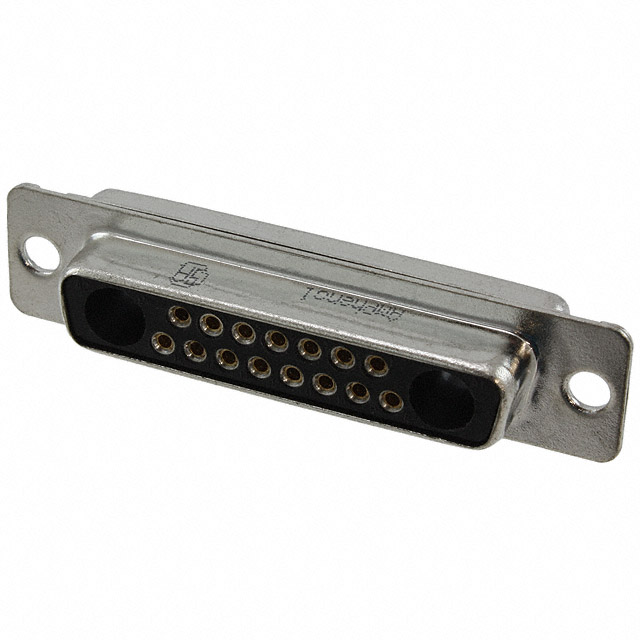

Amphenol ICC (Commercial Products) L77TWB17W2S	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic Glass Filled	7.5 A	16 µin	0.41 µm	Panel Mount	Combo D-Sub	Housing/Shell (Unthreaded)	2	B DB	17W2	3		Gold		Receptacle Female Sockets		15			2
Amphenol ICC (Commercial Products) L77TWB17W2SSY	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic	7.5 A	16 µin	0.41 µm	Panel Mount Through Hole	Combo D-Sub	Housing/Shell (Unthreaded)	2	B DB	17W2	3		Gold	Solder	Receptacle Female Sockets		15			2
Amphenol ICC (Commercial Products) L77TWB17W2SEP2SV4RRM6	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic	7.5 A	16 µin	0.41 µm	Panel Mount Right Angle Through Hole	Combo D-Sub	Board Side (4-40)	2	B DB	17W2	3	Board Lock Mounting Brackets	Gold	Solder	Receptacle Female Sockets	Signal and Power		17			10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77TWB17W2SMP3SV4RRM6	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic	7.5 A	16 µin	0.41 µm	Panel Mount Right Angle Through Hole	Combo D-Sub	Board Side (4-40)	2	B DB	17W2	3	Board Lock Mounting Brackets	Gold	Solder	Receptacle Female Sockets	Signal and Power		17			8.1 mm	0.319 in
Amphenol ICC (Commercial Products) L77TWB17W2SESV3FRM6	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic	7.5 A	16 µin	0.41 µm	Panel Mount Right Angle Through Hole	Combo D-Sub	Mating Side Female Screwlock (M3)	2	B DB	17W2	3	Board Lock Mounting Brackets	Gold	Solder	Receptacle Female Sockets		15			2	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77TWB17W2SEP3SV4FRM6	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic	7.5 A	16 µin	0.41 µm	Panel Mount Right Angle Through Hole	Combo D-Sub	4-40 Mating Side Female Screwlock	2	B DB	17W2	3	Board Lock Mounting Brackets	Gold	Solder	Receptacle Female Sockets	Signal and Power		17			10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77TWB17W2SP3SY	Bronze	155 C	-55 C	300 VDC	Black	Thermoplastic	7.5 A	16 µin	0.41 µm	Panel Mount Through Hole	Combo D-Sub	Housing/Shell (Unthreaded)	2	B DB	17W2	3		Gold	Solder	Receptacle Female Sockets	Signal and Power		17
