MAX77675 Series

Low IQSIMO PMIC with 0.5V to 5.5V Outputs Delivering Up to 700mA Total Output Current

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Low IQSIMO PMIC with 0.5V to 5.5V Outputs Delivering Up to 700mA Total Output Current

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Input (Min) [Min]	Current - Output	Voltage - Output (Max) [Max]	Function	Output Configuration	Voltage - Output (Min/Fixed) [Min]	Voltage - Input (Max) [Max]	Topology	Package / Case	Number of Outputs	Mounting Type	Output Type

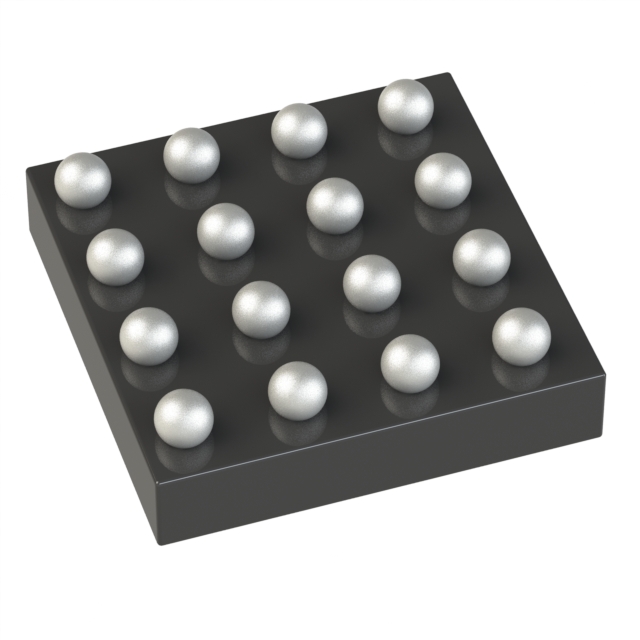

Analog Devices Inc./Maxim Integrated MAX77675AEWE+	85 °C	-40 C	16-WLP	1.99	1.99	2.5 V	700 mA	5.5 V	Step-Up/Step-Down	Positive	0.5 V	5.5 V	Buck-Boost	16-WFBGA WLBGA	1	Surface Mount	Adjustable
Analog Devices Inc./Maxim Integrated MAX77675CEWE+	85 C	-40 ¯C	16-WLP	1.99	1.99	2.5 V	700 mA	5.5 V	Step-Up/Step-Down	Positive	0.5 V	5.5 V	Buck-Boost	16-WFBGA WLBGA	4	Surface Mount	Adjustable
Analog Devices Inc./Maxim Integrated MAX77675CEWE+T	85 C	-40 ¯C	16-WLP	1.99	1.99	2.5 V	700 mA	5.5 V	Step-Up/Step-Down	Positive	0.5 V	5.5 V	Buck-Boost	16-WFBGA WLBGA	4	Surface Mount	Adjustable

Catalog

Low IQSIMO PMIC with 0.5V to 5.5V Outputs Delivering Up to 700mA Total Output Current

Description

The MAX77675 is a highly efficient, complete power supply for low-power, ultra-compact applications. It provides four programmable buck-boost switching outputs using only one inductor. Operating from a single lithium-ion or Li-ion battery, the MAX77675 delivers a total of 700mA output current (3.7VIN, 1.8VOUT) in less than 40mm2solution size.An integrated sequencer controls full startup while an I2C interface allows the MAX77675 to be dynamically configured and monitored.This device is part of the single-inductor multiple-output (SIMO) product family.ApplicationsTWS Bluetooth™ Headphones/HearablesFitness, Health, Activity Monitors, and Smart WatchesPortable DevicesSensor Nodes and Consumer Internet of Things or IoT
