8621 Series
Manufacturer: Belden Inc.
Beta
⌘K

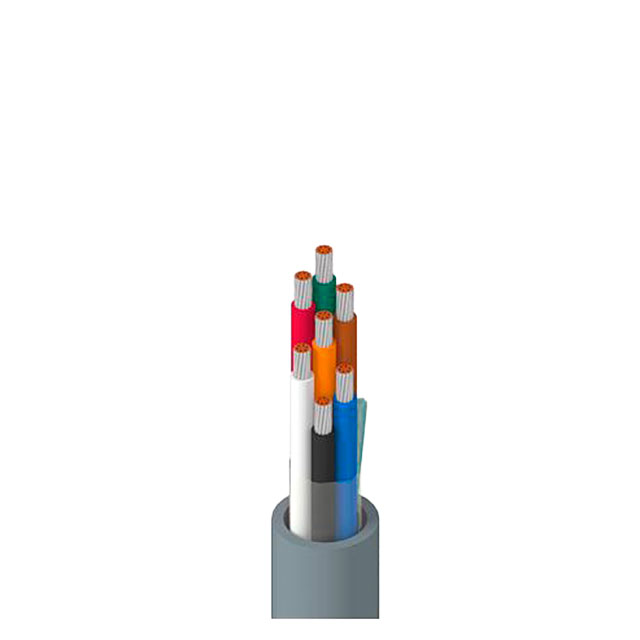

CABLE 7COND 16AWG CHROME
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Length | Length | Conductor Material | Cable Type | Voltage | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 19 | 29 | 80 °C | -20 ░C | 16 AWG | 304.8 m | 1000 ft | Copper Tinned | Multi-Conductor | 600 V | 7 | Poly-Vinyl Chloride (PVC) | 11.63 mm | 0.458 in | Poly-Vinyl Chloride (PVC) | Chrome | Audio Control Instrumentation | 1.143 mm | 0.045 in | ||
Belden Inc. | 19 | 29 | 80 °C | -20 ░C | 16 AWG | Copper Tinned | Multi-Conductor | 600 V | 7 | Poly-Vinyl Chloride (PVC) | 11.63 mm | 0.458 in | Poly-Vinyl Chloride (PVC) | Chrome | Audio Control Instrumentation | 1.143 mm | 0.045 in | 100 ft | 30.5 m |
