HT 1 Series

Catalog

SPIRAL WRAP 0.84" X 100' YELLOW

Part	Type Attributes	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded	Diameter - Inside, Non-Expanded [diameter]	Length	Length	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Wall Thickness	Wall Thickness	Material	Type	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Environment Protection [custom]	Heat Protection	Material Flammability Rating
MM Newman Corporation HT 1 C YE	Harness	25.4 mm	1 in	21.34 mm	0.84 "	100 '	30.48 m	Chemical Resistant Solvent Resistant	177.8 mm	7 in	88 °C	-60 °C	Abrasion Resistant	0.08 in	2.03 mm	Polyethylene (PE)	Spiral Wrap	Yellow

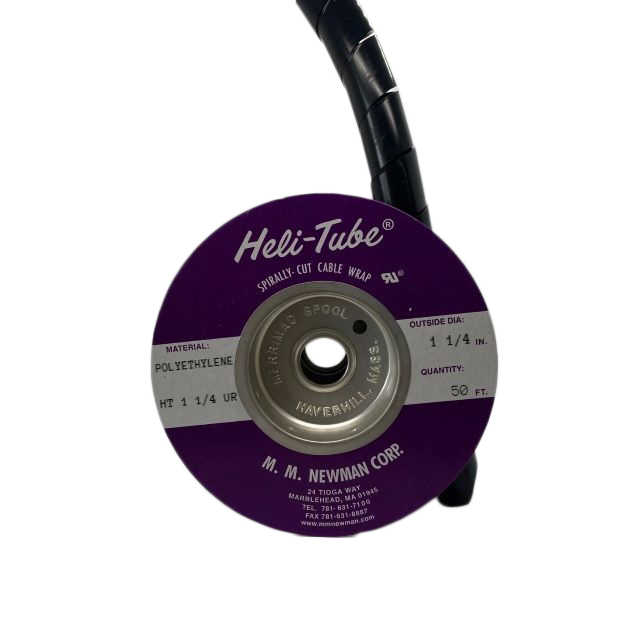

MM Newman Corporation HT 1 1/4 UR	Harness	31.75 mm	1.25 in			50 ft	15.24 m	Chemical Resistant Solvent Resistant		8 in	88 °C	-60 °C	Abrasion Resistant	0.09 in	2.29 mm	Polyethylene (PE)	Spiral Wrap	Black	203.2 mm
MM Newman Corporation HT 1 N	Harness	25.4 mm	1 in		0.936 "	100 '	30.48 m	Chemical Resistant Self Extinguishing Solvent Resistant	177.8 mm	7 in	121 C	-40 C	Abrasion Resistant	0.032 in	0.81 mm	Nylon	Spiral Wrap	Natural		23.77 mm

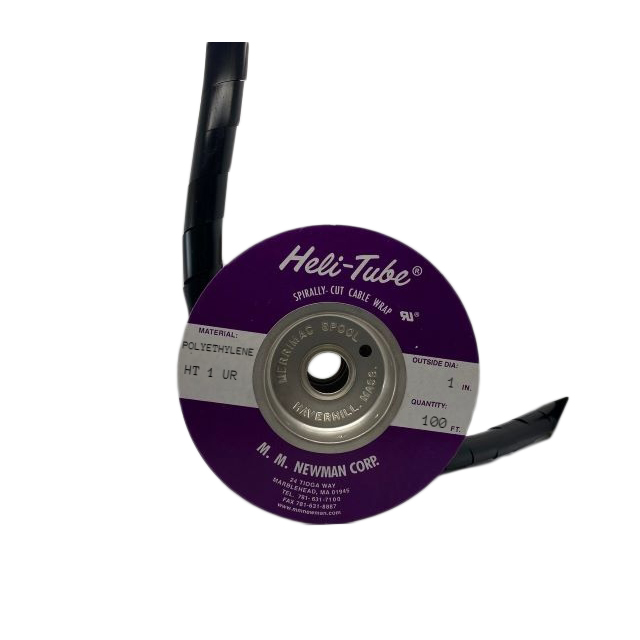

MM Newman Corporation HT 1 UR	Harness	25.4 mm	1 in	21.34 mm	0.84 "	100 '	30.48 m	Chemical Resistant Solvent Resistant	177.8 mm	7 in	88 °C	-60 °C	Abrasion Resistant	0.08 in	2.03 mm	Polyethylene (PE)	Spiral Wrap	Black

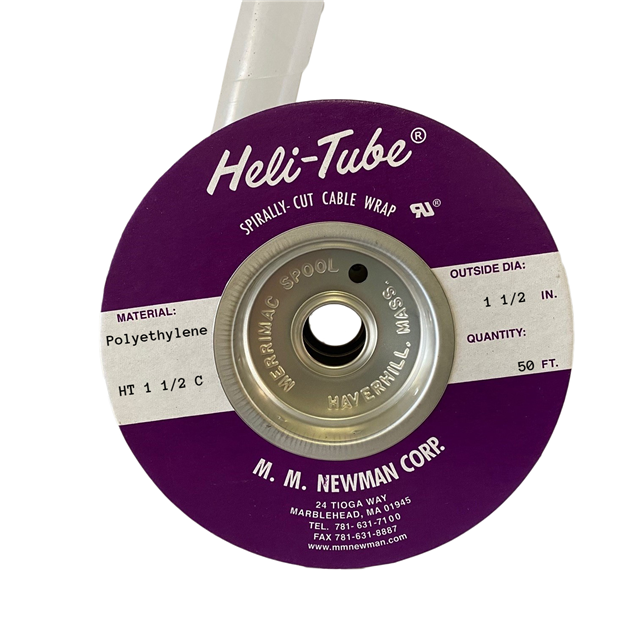

MM Newman Corporation HT 1 1/2 C	Harness	38.1 mm	1.5 in		1.3 in	50 ft	15.24 m	Chemical Resistant Solvent Resistant		10 "	88 °C	-60 °C	Abrasion Resistant	0.1 in	2.54 mm	Polyethylene (PE)	Spiral Wrap	Natural	254 mm	33.02 mm

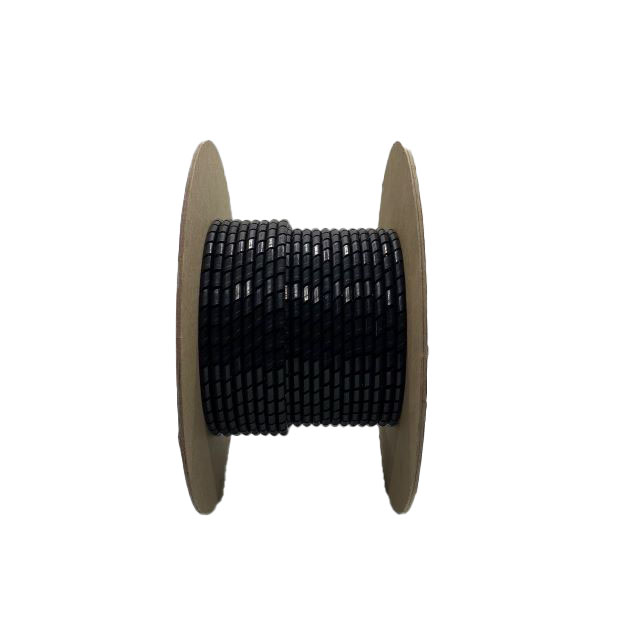

MM Newman Corporation HT 1 N-B	Harness	25.4 mm	1 in		0.936 "	100 '	30.48 m	Chemical Resistant Self Extinguishing Solvent Resistant	177.8 mm	7 in	121 C	-40 C	Abrasion Resistant	0.032 in	0.81 mm	Nylon	Spiral Wrap	Black		23.77 mm	UV Resistant
MM Newman Corporation HT 1 C WH	Harness	25.4 mm	1 in	21.34 mm	0.84 "	100 '	30.48 m	Chemical Resistant Solvent Resistant	177.8 mm	7 in	88 °C	-60 °C	Abrasion Resistant	0.08 in	2.03 mm	Polyethylene (PE)	Spiral Wrap	White
MM Newman Corporation HT 1 R	Harness	25.4 mm	1 in	21.34 mm	0.84 "	100 '	30.48 m	Chemical Resistant Solvent Resistant	177.8 mm	7 in	80 °C	-20 ░C	Abrasion Resistant	0.08 in	2.03 mm	Polyethylene (PE)	Spiral Wrap	White				Fire Resistant	UL1441 UL94 V-2

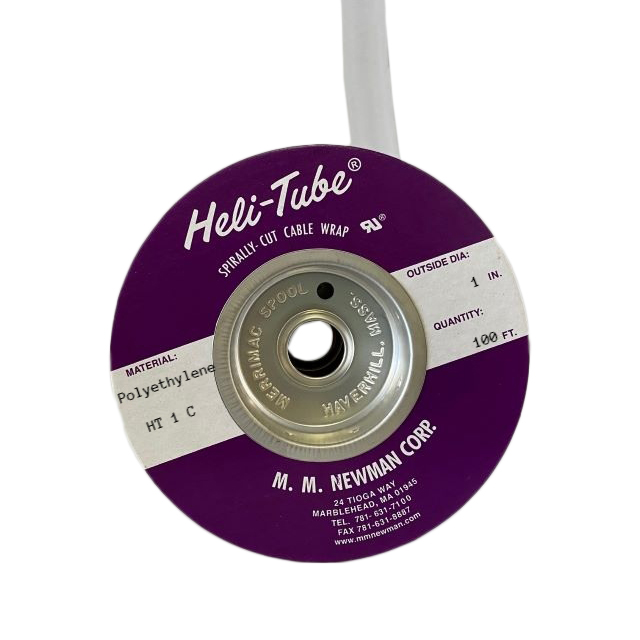

MM Newman Corporation HT 1 C	Harness	25.4 mm	1 in	21.34 mm	0.84 "	100 '	30.48 m	Chemical Resistant Solvent Resistant	177.8 mm	7 in	88 °C	-60 °C	Abrasion Resistant	0.08 in	2.03 mm	Polyethylene (PE)	Spiral Wrap	Natural

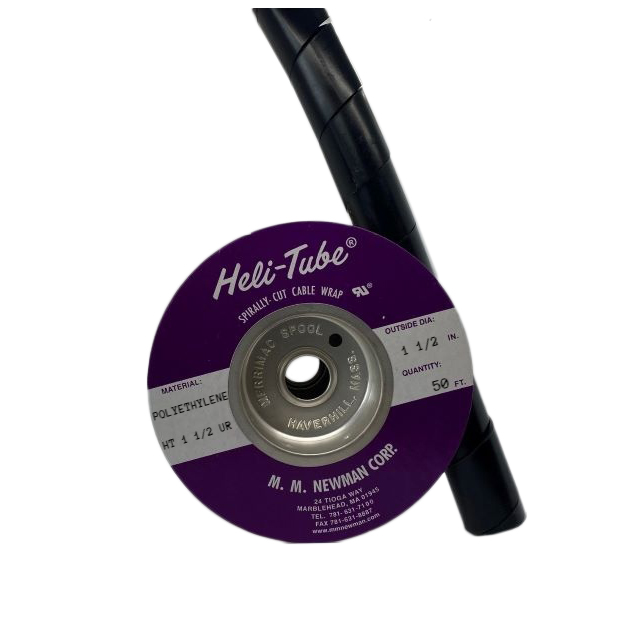

MM Newman Corporation HT 1 1/2 UR	Harness	38.1 mm	1.5 in		1.3 in	50 ft	15.24 m	Chemical Resistant Solvent Resistant		10 "	88 °C	-60 °C	Abrasion Resistant	0.1 in	2.54 mm	Polyethylene (PE)	Spiral Wrap	Black	254 mm	33.02 mm
