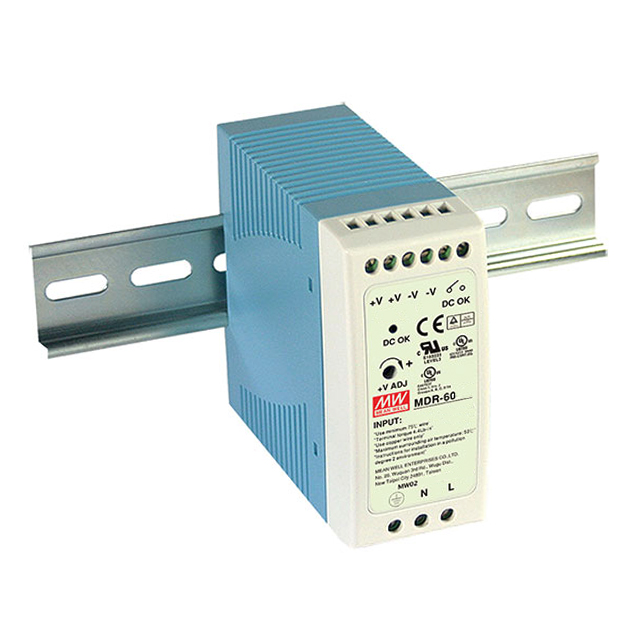

MDR-60 Series

Catalog

AC/DC DIN RAIL SUPPLY 5V 50W

Part	Minimum Load Required	DC Voltage - Input (Min) [Min]	Power (Watts)	DC Voltage - Input (Max) [Max]	Input Type	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Number of Outputs	Approval Agency	Applications	Features	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
MEAN WELL USA Inc. MDR-60-5		120 V	50 W	370 V	AC or DC	78 %	5 V	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	264 VAC	85 VAC	10 A	1	CB CE cULus cURus TUV	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	3000 V	70 °C	-20 °C
MEAN WELL USA Inc. MDR-60-12		120 V	60 W	370 V	AC or DC	86 %	12 V	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	264 VAC	85 VAC		1	CB CE cULus cURus TUV	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	3000 V	70 °C	-20 °C	5 A
