FAN65008B Series

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 10 A

Catalog

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 10 A

Part	Topology	Package / Case	Supplier Device Package	Synchronous Rectifier	Voltage - Input (Min) [Min]	Output Type	Voltage - Output (Max) [Max]	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Output (Min/Fixed)	Current - Output	Function	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Output Configuration

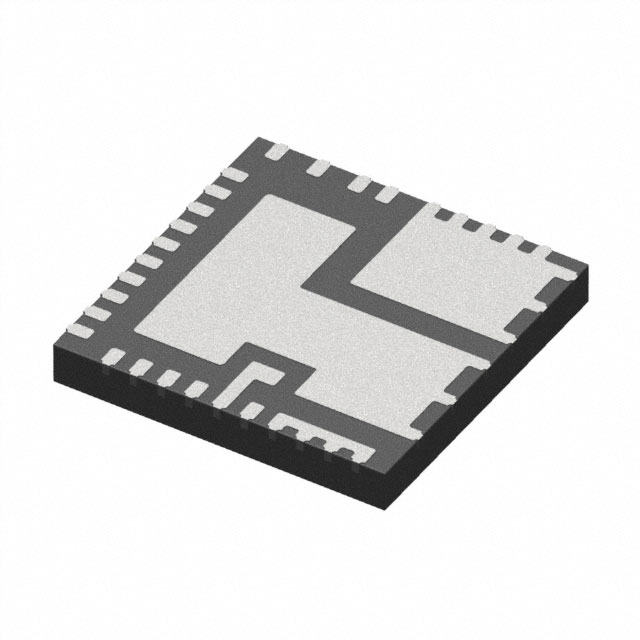

ON Semiconductor FAN65008B	Buck	35-PowerWFQFN	35-PQFN (6x6)		4.5 V	Adjustable	32.5 V	Surface Mount	1 MHz	100 kHz	0.6 V	10 A	Step-Down	1	-40 °C	125 °C	65 V	Positive

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 10 A

• Wide Input Voltage Range: 4.5 V to 65 V

• Switching Frequency: 100 kHz to 1 MHz

• 0.6 V Reference Voltage with 0.67% Accuracy

• Selectable CCM PWM Mode or PFM Mode for Light Loads

• Over Current Protection, Thermal Shutdown, OverVoltage Protection, Under Voltage Protection andShort−circuit Protection

• Dual LDOs for Single Supply Operation and to ReducePower Loss

• External Compensation for Wide Operation Range

• Adjustable Soft−Start & Pre−Bias Startup

• Enable Function with Adjustable Input VoltageUnder−Voltage−Lock−Out (UVLO)

• Power Good Indicator
