TH03 Series

Catalog

TERM BLOCK PLUG 3POS 90DEG 5MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Screw Size	Termination Style	Wire Strip Length [Min]	Wire Strip Length [Max]	Voltage - UL	Color	Positions Per Level	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Plug Wire Entry	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Torque - Screw	Torque - Screw	Type	Features	Material Flammability Rating	Contact Material	Contact Mating Finish	Current - UL

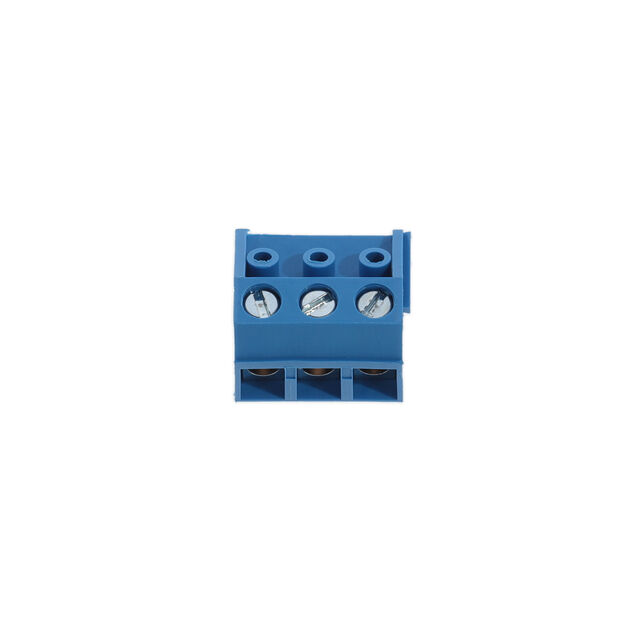

Amphenol Anytek TH0301600000G	-40 °C	115 °C	Free Hanging (In-Line)	0.34 mm²	1.5 mm²	1	M2.6	Screw - Leaf Spring Wire Guard	5 mm	6 mm	300 V	Blue	3	5 mm	0.197 in	0.433 in	11 mm	90 °	14 AWG	22 AWG	Thermoplastic	0.4 Nm	3.5 Lb-In	Plug for Unshrouded Header	Interlocking (Side)	UL94 V-0	Phosphor Bronze
Amphenol Anytek TH0341500000G	-40 °C	115 °C	Free Hanging (In-Line)			1	M2	Screw - Leaf Spring Wire Guard	5 mm	6 mm	300 V	Green	3	3.81 mm	0.15 in	0.402 in	10.2 mm	90 °	16 AWG	28 AWG	Thermoplastic	0.2 Nm	1.7 Lb-In	Plug for Unshrouded Header	Interlocking (Side)	UL94 V-0	Phosphor Bronze	Tin	10 A
