RFAA185 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL ADAPTER, 1.85MM COAXIAL, PLUG, 1.85MM COAXIAL, JACK, STRAIGHT ADAPTER, 50 OHM
| Part | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mating Cycles | Mounting Type | Impedance | Conversion Type | Frequency - Max [Max] | Convert From (Adapter End) | Convert From (Adapter End) | Adapter Series [Max] | Adapter Series [Min] | Adapter Type | Style | Convert To (Adapter End) | Center Gender | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

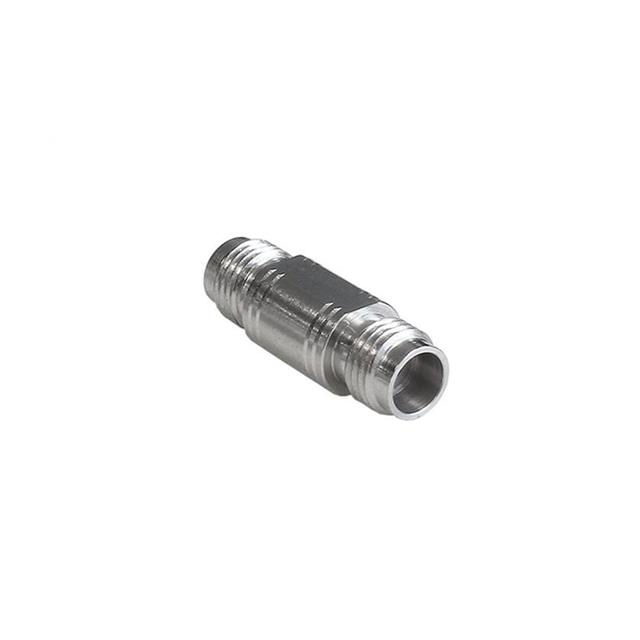

 BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Same Series | 65 GHz | Plug Male Pin | 1.85 mm | 1.85 mm | 1.85 mm | Plug to Jack | Straight | 1.85mm Jack Female Socket | ||
 BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | 1.85mm Jack Female Socket | 2.4 mm | 1.85 mm | Jack to Jack | Straight | (APC-2.4 OS-50) Jack Female Socket | Female to Female | 2.4 mm | |
 BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | Plug Male Pin | 1.85 mm | 2.92 mm | 1.85 mm | Plug to Plug | Straight | 2.92mm (OS-2.9) Plug Male Pin | Male to Male | |

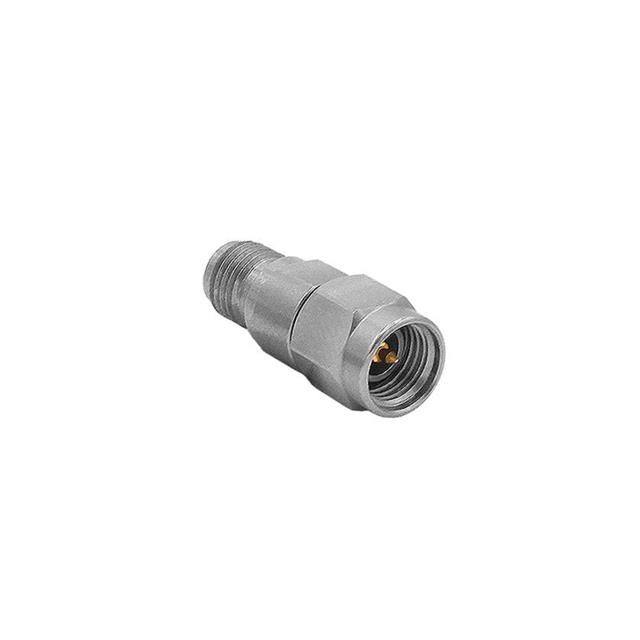

 BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | 1.85mm Jack Female Socket | 3.5 mm | 1.85 mm | Plug to Jack | Straight | 3.5mm Plug Male Pin | |||
 BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Same Series | 65 GHz | 1.85mm Jack Female Socket | 1.85 mm | 1.85 mm | Jack to Jack | Straight | 1.85mm Jack Female Socket | Female to Female | ||
BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | Plug Male Pin | 1.85 mm | 2.92 mm | 1.85 mm | Plug to Jack | Straight | Jack Female Socket | 2.92 mm | |
BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | 1.85mm Jack Female Socket | 2.92 mm | 1.85 mm | Plug to Jack | Straight | 2.92mm (OS-2.9) Plug Male Pin | |||
BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | 1.85mm Jack Female Socket | 3.5 mm | 1.85 mm | Jack to Jack | Straight | 3.5mm Jack Female Socket | Female to Female | ||
 BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Between Series | 65 GHz | Plug Male Pin | 1.85 mm | 3.5 mm | 1.85 mm | Plug to Plug | Straight | 3.5mm Plug Male Pin | Male to Male | |
BULGIN LIMITED | Beryllium Copper | -40 C | 65 °C | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | Free Hanging (In-Line) | 50 Ohms | Same Series | 65 GHz | Plug Male Pin | 1.85 mm | 1.85 mm | 1.85 mm | Plug to Plug | Straight | 1.85mm Plug Male Pin | Male to Male |
