502761 Series
Manufacturer: Molex
Beta
⌘K

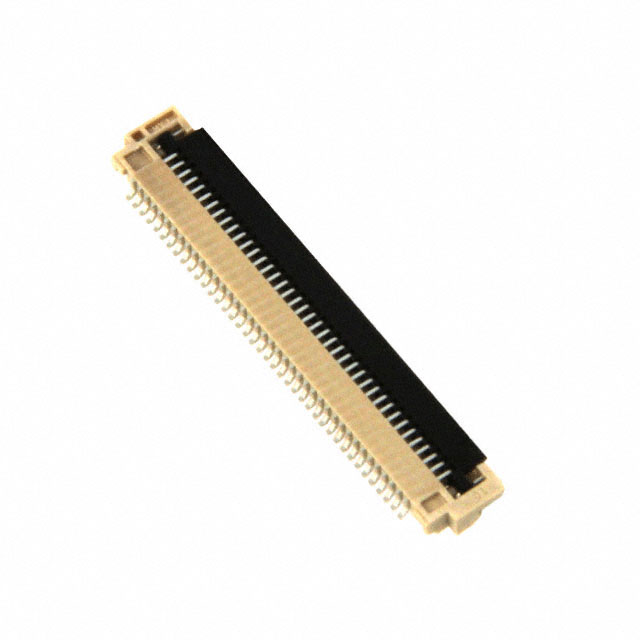

CONN FPC BOTTOM 49POS 0.3MM R/A
| Part | Housing Color | FFC, FCB Thickness | Flat Flex Type | Locking Feature | Cable End Type | Height Above Board | Height Above Board | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Material Flammability Rating | Mating Cycles | Mounting Type | Current Rating (Amps) | Termination | Connector/Contact Type | Actuator Material | Pitch [x] | Pitch [x] | Actuator Color | Housing Material | Contact Material | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | 0.12 mm | FPC | Flip Lock | Tabbed | 0.024 in | 0.61 mm | 85 °C | -40 °C | 50 V | UL94 V-0 | 10 | Surface Mount Right Angle | 0.2 A | Solder | Contacts Bottom | Liquid Crystal Polymer (LCP) Glass Filled | 0.012 in | 0.3 mm | Gray | Liquid Crystal Polymer (LCP) Glass Filled | Copper Alloy | Gold | 49 |
