047725 Series

Manufacturer: Molex

Catalog

CONN PLUG HSG 12POS 3.50MM

Part	Contact Type	Connector Type	Features	Pitch [x]	Pitch [x]	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Number of Positions	Note	Fastening Type	Insulation Material

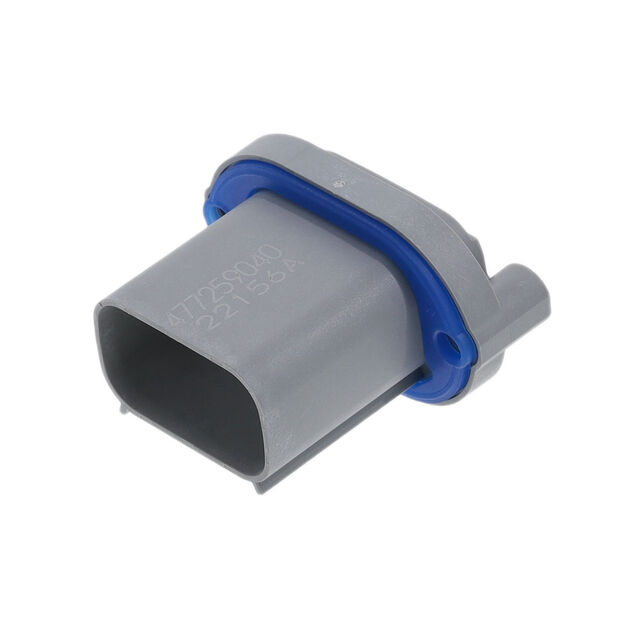

Molex 0477259040	Male Blade	Plug	Terminal Position Lock (TPA)	3.5 mm	0.138 in	Crimp	125 °C	-40 °C	2	Gray	12	Contacts Not Included	Locking Ramp	Nylon Polyamide (PA)
Molex 0477252040	Male Blade	Plug	Terminal Position Lock (TPA)	3.5 mm	0.138 in	Crimp			2	Gray	12	Contacts Not Included	Locking Ramp
Molex 0477259010	Male Blade	Plug	Terminal Position Lock (TPA)	3.5 mm	0.138 in	Crimp	125 °C	-40 °C	2	Black	12	Contacts Not Included	Locking Ramp	Nylon Polyamide (PA)
Molex 0477256010	Male Blade	Plug	Terminal Position Lock (TPA)	3.5 mm	0.138 in	Crimp	125 °C	-40 °C	2	Black	12	Contacts Not Included	Locking Ramp	Polybutylene Terephthalate (PBT)
Molex 0477252030	Male Blade	Plug	Terminal Position Lock (TPA)	3.5 mm	0.138 in	Crimp			2	Gray	12	Contacts Not Included	Locking Ramp
Molex 0477251310
