091716 Series

Manufacturer: Molex

Catalog

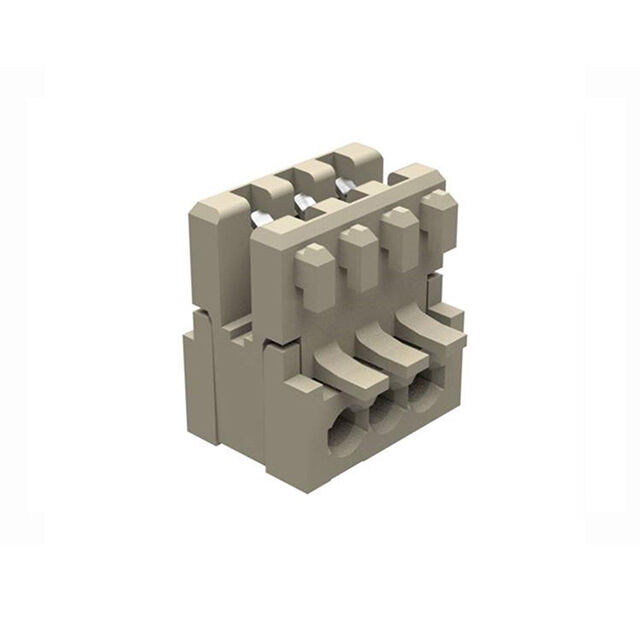

CONN RCPT 8POS IDC 22-24AWG TIN

Part	Connector Type	Wire Type	Contact Type	Number of Positions	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Cable Termination	Pitch [x]	Pitch [x]	Contact Finish	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Molex 0917162511	Receptacle	Discrete	Outer Shroud Contact	8	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
Molex 0917165001	Receptacle	Discrete	Outer Shroud Contact	13	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle

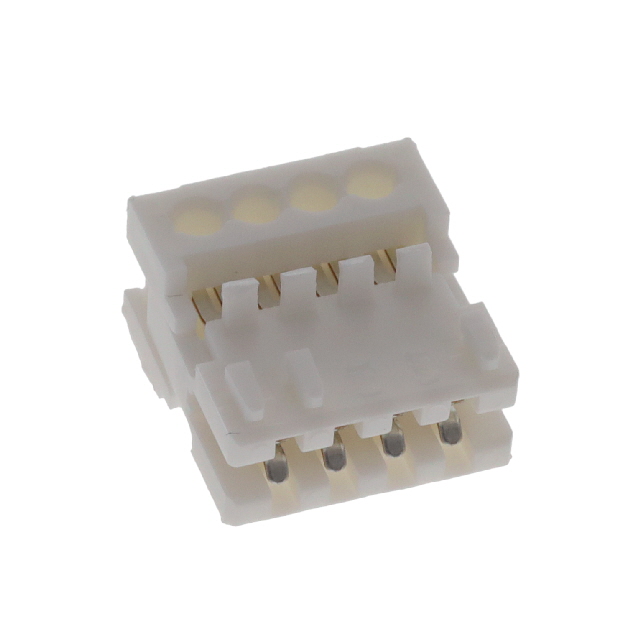

Molex 0917160530	Receptacle	Discrete	Outer Shroud Contact	4	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
Molex 0917163001	Receptacle	Discrete	Outer Shroud Contact	9	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
Molex 0917161501	Receptacle	Discrete	Outer Shroud Contact	6	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
Molex 0917169001	Receptacle	Discrete	Outer Shroud Contact	2	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle	1.02 Ám	40 Áin
Molex 0917166501	Receptacle	Discrete	Outer Shroud Contact		1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle			16
Molex 0917168501	Receptacle	Discrete	Outer Shroud Contact	20	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
Molex 0917160501	Receptacle	Discrete	Outer Shroud Contact	4	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
Molex 0917162001	Receptacle	Discrete	Outer Shroud Contact	7	1	24 AWG	22 AWG	IDC	0.098 in	2.5 mm	Tin	Natural	Free Hanging (In-Line) Right Angle
