SML-511 Series

Catalog

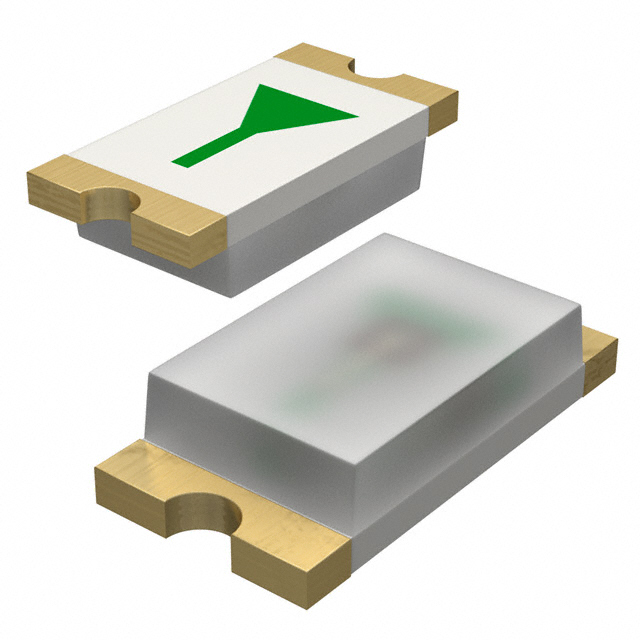

LED UNI-COLOR RED 630NM 2-PIN CHIP LED T/R

Part	Configuration	Wavelength - Dominant	Color	Height (Max) [z]	Lens Color	Lens Transparency	Lens Style	Current - Test	Millicandela Rating	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Mounting Type	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Typ)
Rohm Semiconductor SML-511UWT86	Standard	620 nm	Red	0.65 mm	White	Diffused	Rectangle with Flat Top	20 mA	40 mcd	1608 Metric	0603	1.6 mm	0.8 mm	0.8 mm	1.2 mm	Surface Mount	1608	603	2 V
Rohm Semiconductor SML-511DWT86	Standard	605 nm		0.65 mm	White	Diffused	Rectangle with Flat Top	20 mA	40 mcd	1608 Metric	0603	1.6 mm	0.8 mm	0.8 mm	1.2 mm	Surface Mount	1608	603	2 V
Rohm Semiconductor SML-511WWT86	Standard	590 nm	Yellow	0.65 mm	White	Diffused	Rectangle with Flat Top	20 mA	40 mcd	1608 Metric	0603	1.6 mm	0.8 mm	0.8 mm	1.2 mm	Surface Mount	1608	603	2 V
