XC8111 Series
Manufacturer: Torex Semiconductor Ltd
Beta
⌘K
SINGLE CHANNEL HIGH SIDE LOAD SWITCH, 1 CHANNEL, 6 V, 1.7 A, 850 MILLIOHMS, 4 PINS, WLP
| Part | Voltage - Supply (Vcc/Vdd) | Voltage - Load [Min] | Voltage - Load [Max] | Package / Case | Output Type | Number of Outputs | Mounting Type | Current - Output (Max) [Max] | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Interface | Input Type | Ratio - Input:Output | Fault Protection | Switch Type | Rds On (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

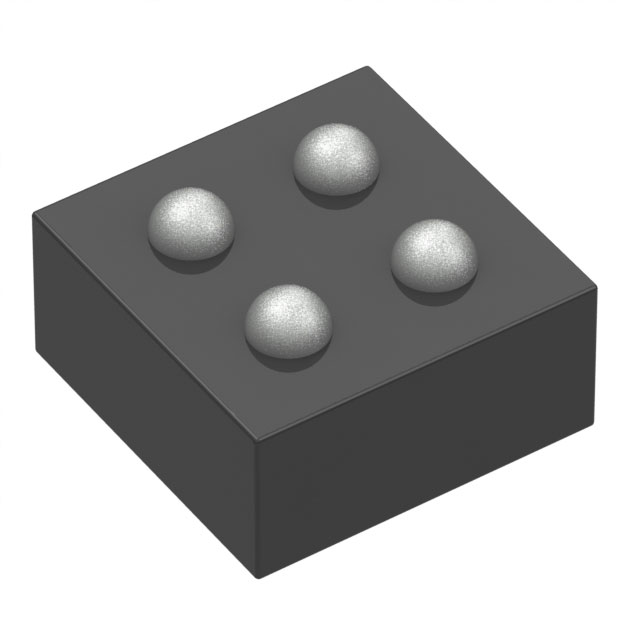

 Torex Semiconductor Ltd | Not Required | 1.5 V | 6 V | 4-XFBGA WLBGA | P-Channel | 1 | Surface Mount | 1 A | High Side | -40 °C | 105 °C | 4-WLP-02 (0.82x0.82) | On/Off | Non-Inverting | 1:1 | Current Limiting (Fixed) Over Temperature | General Purpose | 380 mOhm |
 Torex Semiconductor Ltd | Not Required | 1.5 V | 6 V | 6-XFDFN Exposed Pad | P-Channel | 1 | Surface Mount | 1 A | High Side | -40 °C | 105 °C | USP-6B06 | On/Off | Non-Inverting | 1:1 | Current Limiting (Fixed) Over Temperature | General Purpose | 410 mOhm |
 Torex Semiconductor Ltd | Not Required | 1.5 V | 6 V | SC-74A SOT-753 | P-Channel | 1 | Surface Mount | 1 A | High Side | -40 °C | 105 °C | SOT-25 | On/Off | Non-Inverting | 1:1 | Current Limiting (Fixed) Over Temperature | General Purpose | 430 mOhm |
