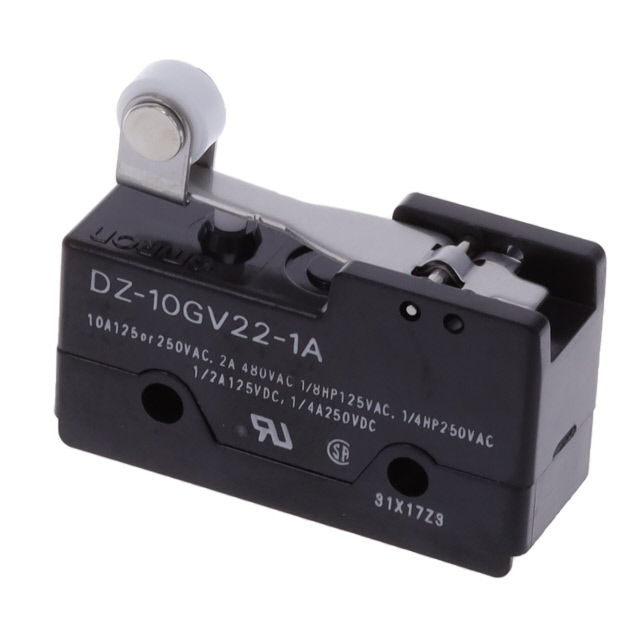

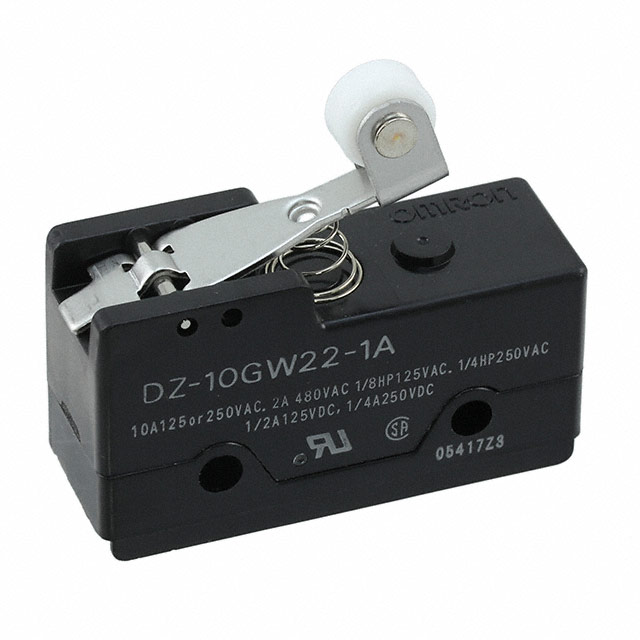

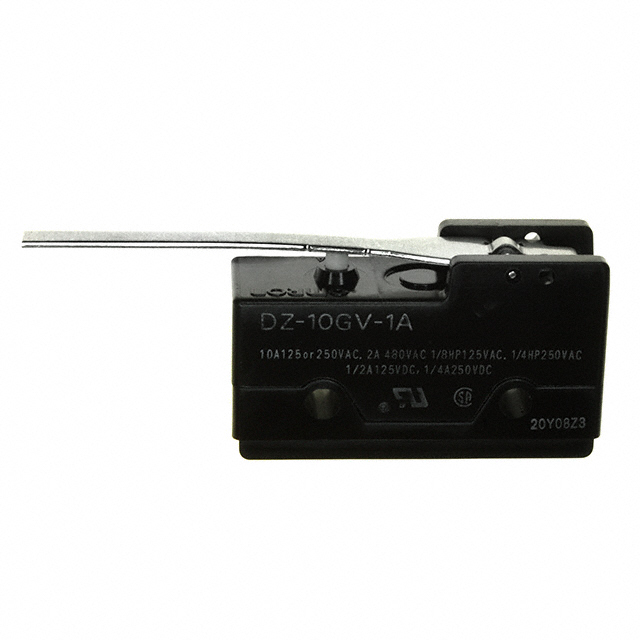

DZ-10G Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACTION DPDT 10A 125V

Part	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Circuit	Ingress Protection	Mounting Type	Mechanical Life	Termination Style	Actuator Type	Switch Function	Operating Force	Release Force	Operating Position	Operating Position	Overtravel	Overtravel	Differential Travel	Differential Travel	Pretravel	Pretravel

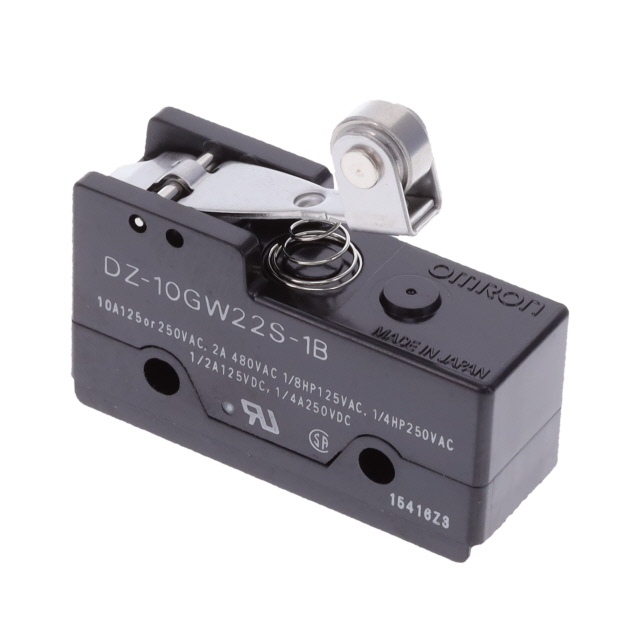

Omron Electronics Inc-EMC Div DZ-10GW22S-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Screw Terminal	Lever Roller	On-Mom

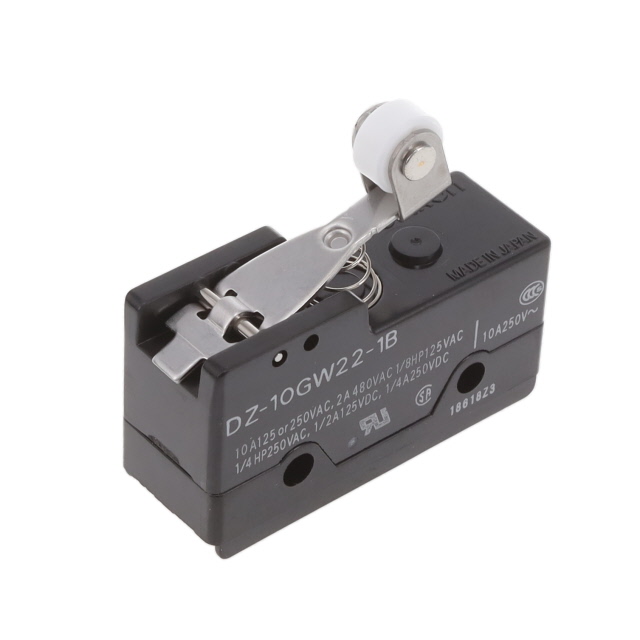

Omron Electronics Inc-EMC Div DZ-10GW22-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Screw Terminal	Lever Roller	On-Mom	400 gf	85 gf	30.2 mm	1.188 in	0.035 "	0.9 mm	0.094 in	2.4 mm

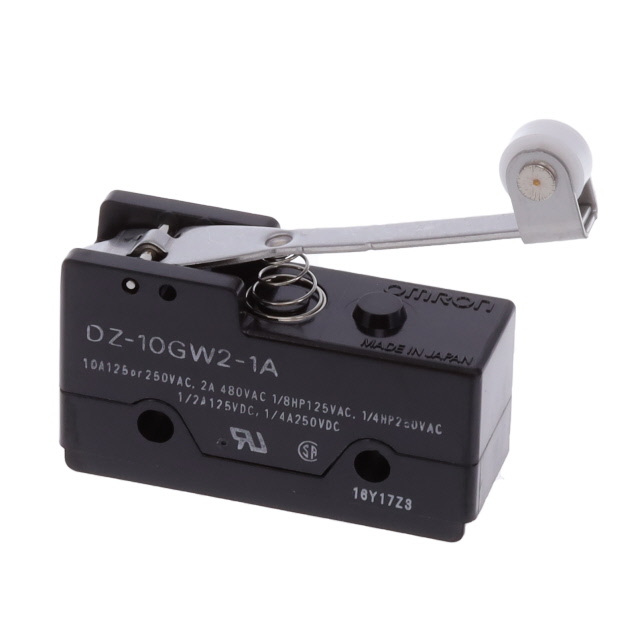

Omron Electronics Inc-EMC Div DZ-10GW2-1A	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Solder Lug	Lever Roller	On-Mom	213 gf	42 gf			0.047 "	1.2 mm	0.135 in	3.4 mm

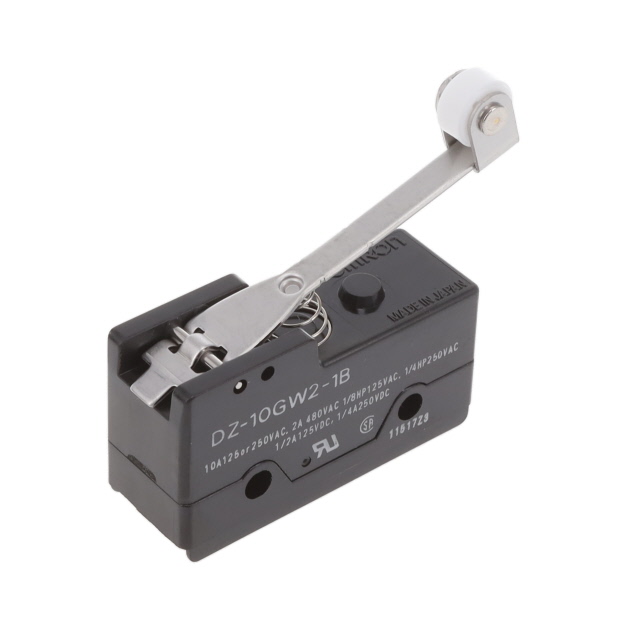

Omron Electronics Inc-EMC Div DZ-10GW2-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Screw Terminal	Lever Roller	On-Mom	213 gf	42 gf			0.047 "	1.2 mm	0.135 in	3.4 mm

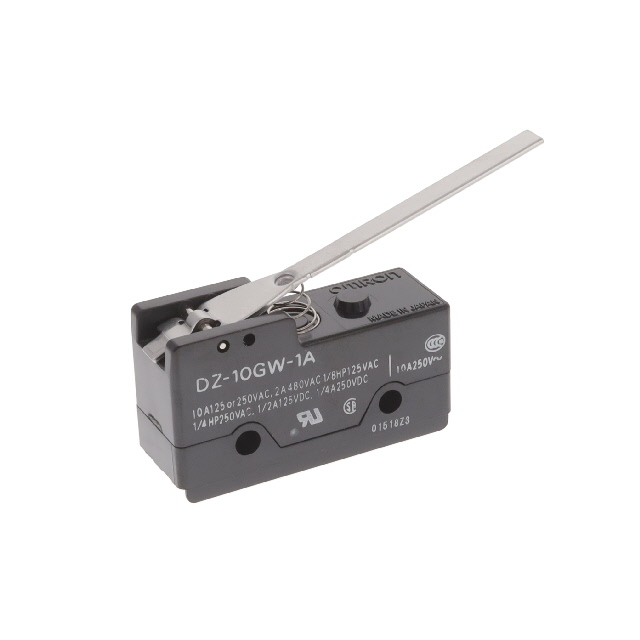

Omron Electronics Inc-EMC Div DZ-10GW-1A	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Solder Lug	Lever Straight	On-Mom	170 gf	28 gf	21.8 mm	0.859 in	0.062 in	1.6 mm	0.156 in	4 mm

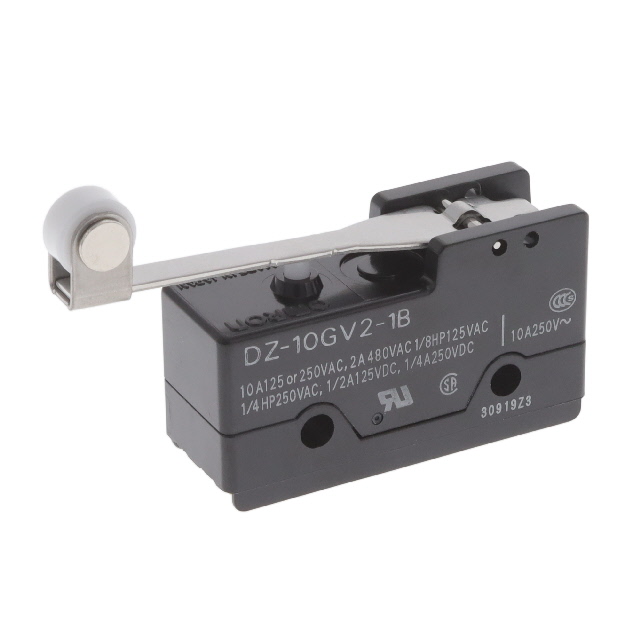

Omron Electronics Inc-EMC Div DZ-10GV2-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Screw Terminal	Lever Roller	On-Mom	270 gf	34 gf	29.4 mm	1.156 "	0.01 in	0.25 mm	0.045 in	1.1 mm	4 mm	0.157 in
Omron Electronics Inc-EMC Div DZ-10GW55-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT		Chassis Mount	1000000 Cycles	Screw Terminal	Lever Straight	On-Mom

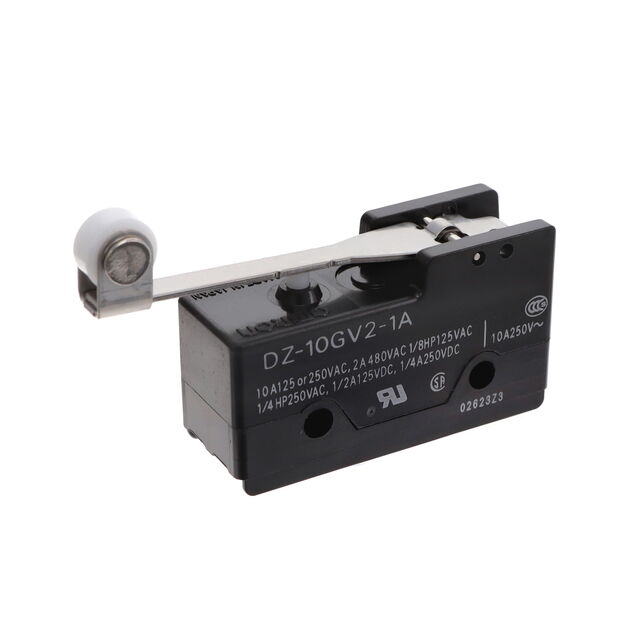

Omron Electronics Inc-EMC Div DZ-10GV2-1A	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Solder Lug	Lever Roller	On-Mom	270 gf	34 gf	29.4 mm	1.156 "	0.01 in	0.25 mm	0.045 in	1.1 mm	4 mm	0.157 in

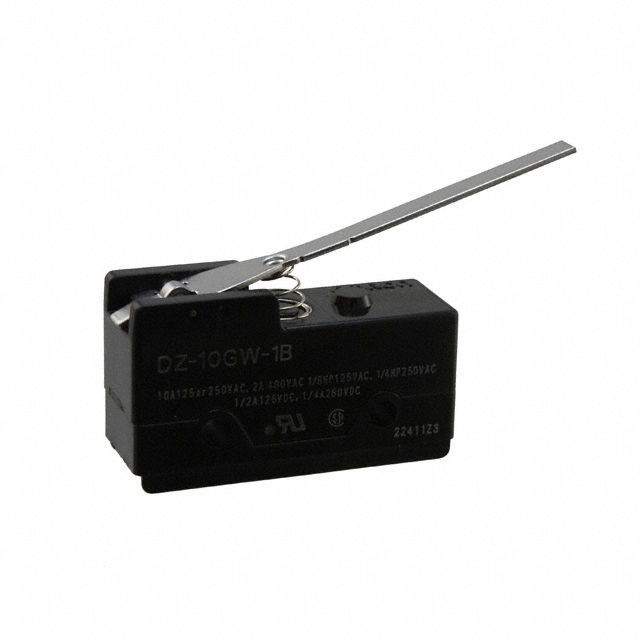

Omron Electronics Inc-EMC Div DZ-10GW-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Screw Terminal	Lever Straight	On-Mom	170 gf	28 gf	21.8 mm	0.859 in	0.062 in	1.6 mm	0.156 in	4 mm
Omron Electronics Inc-EMC Div DZ-10GV-1B	125 V	-25 °C	80 C	500000 Cycles	10 A	30 V	DPDT	IP00	Chassis Mount	1000000 Cycles	Screw Terminal	Lever Straight	On-Mom	200 gf	13 gf	18.3 mm	0.72 in	0.062 in	1.6 mm	0.065 in	1.7 mm
