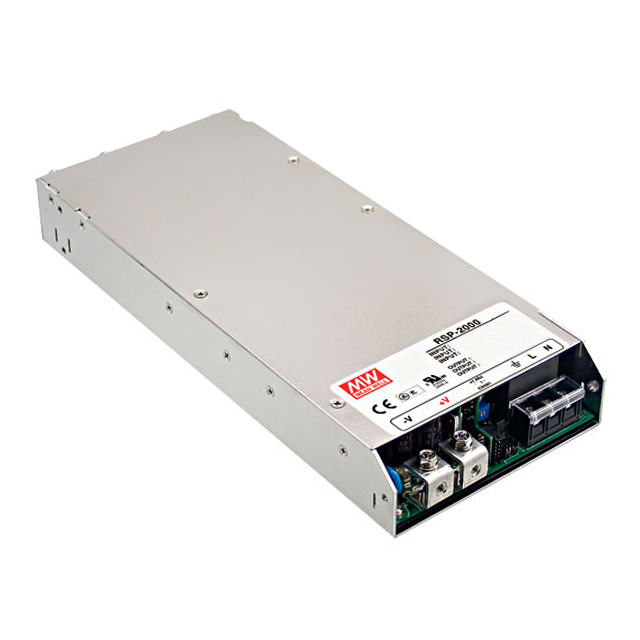

RSP-2000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 1200W
| Part | Minimum Load Required | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Number of Outputs | Features | Applications | Mounting Type | Current - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Approval Agency | Type | Voltage - Output 1 | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 264 VAC 320 VDC 370 VDC | 90 VAC 127 VDC 250 VDC | 70 °C | -35 °C | 3000 V | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | Chassis Mount | 100 A | 1.61 in 41 mm | 11.6 " 294.6 mm | 5 in | 87 % | CB CE cURus TUV | Enclosed | 12 V | 1200 W | |
MEAN WELL USA Inc. | 264 VAC 320 VDC 370 VDC | 90 VAC 127 VDC 250 VDC | 70 °C | -35 °C | 3000 V | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | Chassis Mount | 42 A | 1.61 in 41 mm | 11.6 " 294.6 mm | 5 in | 92 % | CB CE cURus TUV | Enclosed | 48 V | 2016 W | |
MEAN WELL USA Inc. | 264 VAC 320 VDC 370 VDC | 90 VAC 127 VDC 250 VDC | 70 °C | -35 °C | 3000 V | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | Chassis Mount | 1.61 in 41 mm | 11.6 " 294.6 mm | 5 in | 90.5 % | CB CE cURus TUV | Enclosed | 24 V | 1920 W |
