OSTOQ20 Series

Catalog

TERM BLOCK HDR 20POS 5.08MM

Part	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Material	Mounting Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Contact Mating Finish	Positions Per Level	Header Orientation	Features	Number of Positions	Pitch	Pitch	Termination Style	Number of Levels	Type
On Shore Technology Inc. OSTOQ205551	0.157 in	4 mm	UL94 V-0	4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	90° Right Angle	Mating Flange	20	5.08 mm	0.2 in	Solder	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ20A550	0.157 in	4 mm	UL94 V-0	4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	Vertical	Mating Flange	20	7.5 mm	0.295 in	Solder	1	Header Male Pins Shrouded (4 Side)

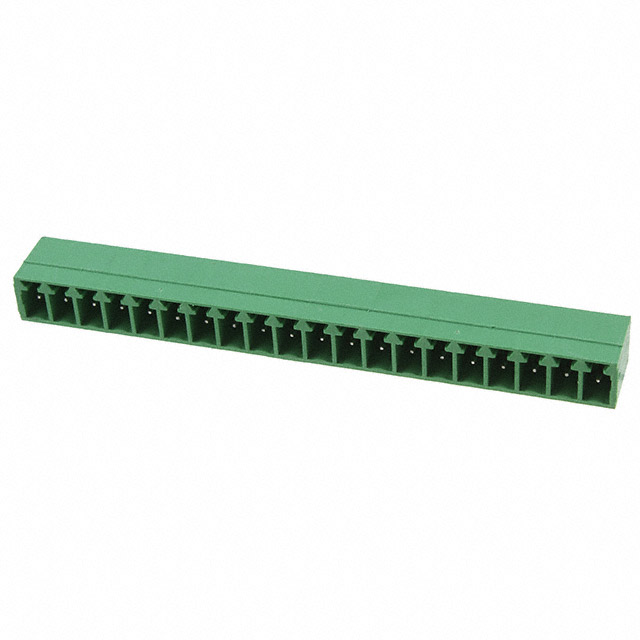

On Shore Technology Inc. OSTOQ203251	0.138 in	3.5 mm		3.5 mm	0.138 "	Brass	Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	90° Right Angle		20	3.81 mm	0.15 in	Solder	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ207051	0.157 in	4 mm		4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	90° Right Angle		20	5 mm	0.197 in	Solder	1	Header Male Pins Shrouded (2 Side)
On Shore Technology Inc. OSTOQ207150	0.157 in	4 mm		4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	Vertical		20	5 mm	0.197 in	Solder	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ207550	0.157 in	4 mm	UL94 V-0	4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	Vertical	Mating Flange	20	5 mm	0.197 in	Solder	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ20A151	0.157 in	4 mm		4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	90° Right Angle		20	7.5 mm	0.295 in	Solder	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ20A051	0.157 in	4 mm		4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	90° Right Angle		20	7.5 mm	0.295 in	Solder	1	Header Male Pins Shrouded (2 Side)
On Shore Technology Inc. OSTOQ203250	0.138 in	3.5 mm		3.5 mm	0.138 "	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	Vertical		20	3.81 mm	0.15 in	Solder	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ20A551	0.157 in	4 mm	UL94 V-0	4 mm	0.157 in	Brass	Solder Through Hole	Thermoplastic	-30 ░C	105 ░C	300 V	Tin	20	90° Right Angle	Mating Flange	20	7.5 mm	0.295 in	Solder	1	Header Male Pins Shrouded (4 Side)
