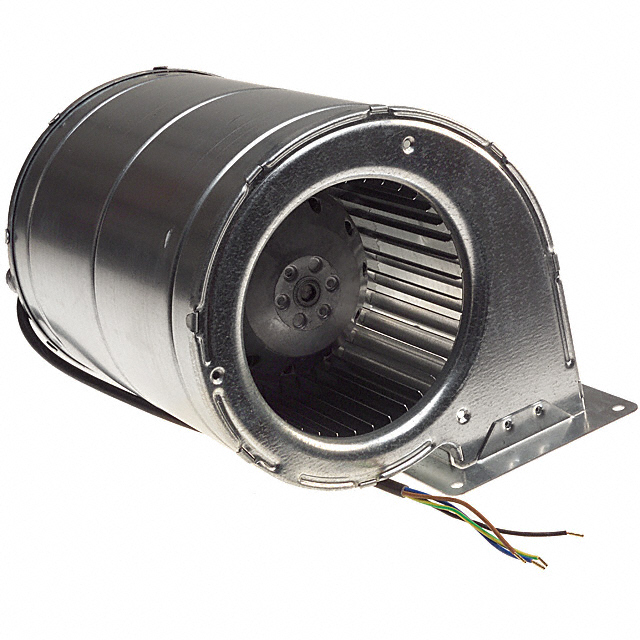

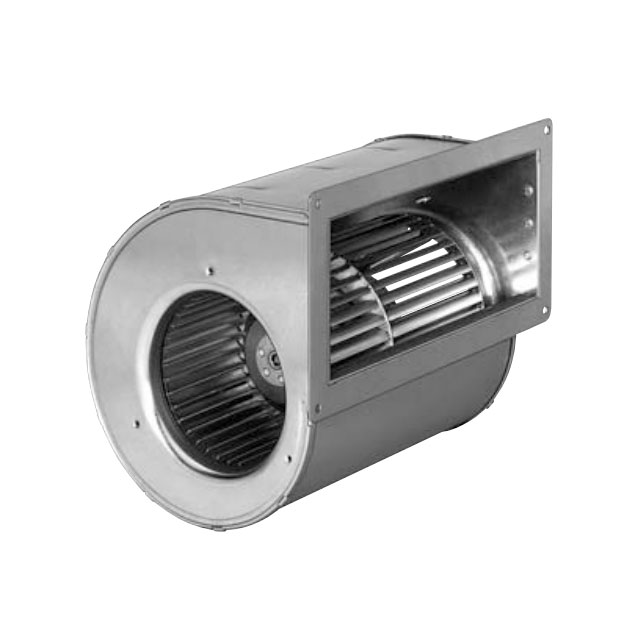

D2E133 Series

Catalog

FAN BLWR CENT 172X254MM 230VAC

Part	Material - Blade	Air Flow	Air Flow	Material - Frame	Weight	Weight	Voltage - Rated	Termination	Bearing Type	Width [x]	Fan Type	Noise	Power (Watts)	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature	Operating Temperature [Min]	Approval Agency	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [custom]	Air Flow	RPM	Ingress Protection	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Features
ebm-papst Inc. D2E133-AM47-A7	Steel	300 CFM	8.4 mł/min	Steel	7.7 lbs	3.5 kg	230 VAC	2 Wire Leads	Ball	10 in	Blower Centrifugal	56 dB	200 Watts	Rectangular/Rounded	198 mm	171.5 mm
ebm-papst Inc. D2E133-BI40-50	Steel	180 CFM	5.04 mł/min	Steel			230 VAC	2 Wire Leads	Ball		Blower Centrifugal	49 dB	110 W	Rectangular/Rounded	180 mm	171.5 mm	194 mm	6.5 lbs	2.9 kg

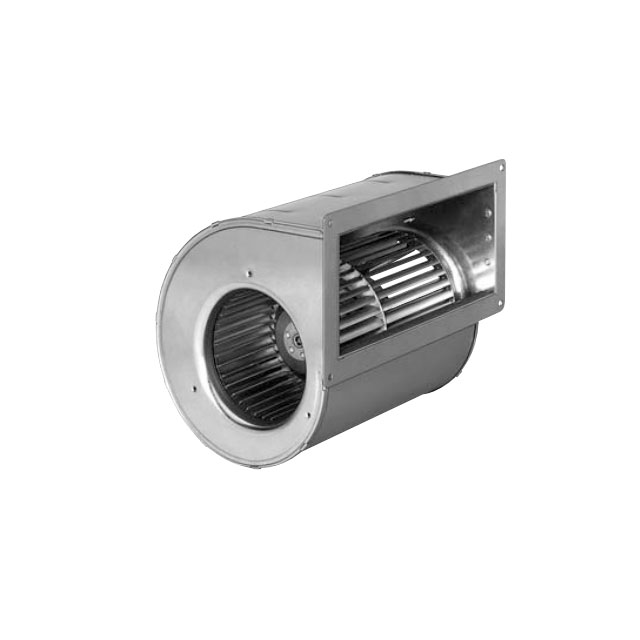

ebm-papst Inc. D2E133-DM67-78	Steel	420 CFM	11.76 m³/min	Steel			115 VAC	2 Wire Leads	Ball		Blower Centrifugal	55 dB(A)	205 W				270 mm			40 °C	0°C ~ 40°C	0 °C	CSA UL VDE
ebm-papst Inc. D2E133-DM47-01	Steel	353 CFM	9.88 mł/min 353 CFM	Steel	9.7 lbs	4.4 kg	230 VAC	2 Wire Leads	Ball		Blower Centrifugal	55 dB(A)	195 W			204 mm	270 mm			80 °C		-40 C		0.82 A	213 mm	133 mm	9.88 m³/min	2200 RPM
ebm-papst Inc. D2E133-AM47-A3			353 CFM				230 VAC	4 Wire Leads	Ball	10 in	Blower Centrifugal	55 dB(A)	200 Watts	Rectangular/Rounded	198 mm	171.5 mm		7.8 lbs	3.5 kg	25 °C		-25 °C	CCC CE UL				9.88 m³/min	1800 RPM	IP44	100 Pa	0.401 in H2O	25 °C	-25 °C	Capacitor Thermal Overload Protection (TOP)
ebm-papst Inc. D2E133-CI33-56	Steel			Steel			230 VAC	4 Wire Leads	Ball		Blower Centrifugal		190 W	Rectangular/Rounded	213 mm	203 mm	168 mm			25 °C		-25 °C	CCC CE EAC	0.84 A				2100 RPM	IP44	200 Pa	0.803 in H2O	25 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. D2E133-DM47-A3	Steel			Steel			230 VAC	4 Wire Leads	Ball	232 mm	Blower Centrifugal		195 W	Rectangular/Rounded	213 mm	203 mm				30 °C		-25 °C		0.85 A				1550 RPM	IP44	100 Pa	0.401 in H2O			Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. D2E133-DM17-98	Steel			Steel			230 VAC	Terminal Block	Ball		Blower Centrifugal		125 W				270 mm			65 °C		-25 °C	CE	0.55 A				950 RPM	IP44			65 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. D2E133-DM47-23	Steel		353 CFM	Steel	9.7 lbs	4.4 kg	230 VAC	2 Wire Leads	Ball		Blower Centrifugal	55 dB(A)	185 W			204 mm	270 mm			80 °C		-40 C	CCC CE GOST	0.82 A	213 mm	133 mm	9.88 m³/min	2200 RPM	IP44
ebm-papst Inc. D2E133-AM47-94	Steel	353 CFM	9.88 mł/min 353 CFM	Steel			230 VAC	4 Wire Leads	Ball		Blower Centrifugal		200 Watts	Rectangular/Rounded	180 mm	170.5 mm	215 mm	7.8 lbs	3.5 kg	25 °C		-25 °C	CE UL	880 mA			9.88 m³/min	1800 RPM	IP44	100 Pa	0.401 in H2O	25 °C	-25 °C	Capacitor Thermal Overload Protection (TOP)
