SB4011 Series

Catalog

PUSHBUTTON SWITCH, SEALED, SB SERIES, 12.5 MM, SPST-NO, OFF-(ON), ROUND, RED

Part	Mechanical Life	Electrical Life	Type	Actuator Marking	Voltage Rating - DC	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Features	Voltage Rating - AC	Current Rating (Amps)

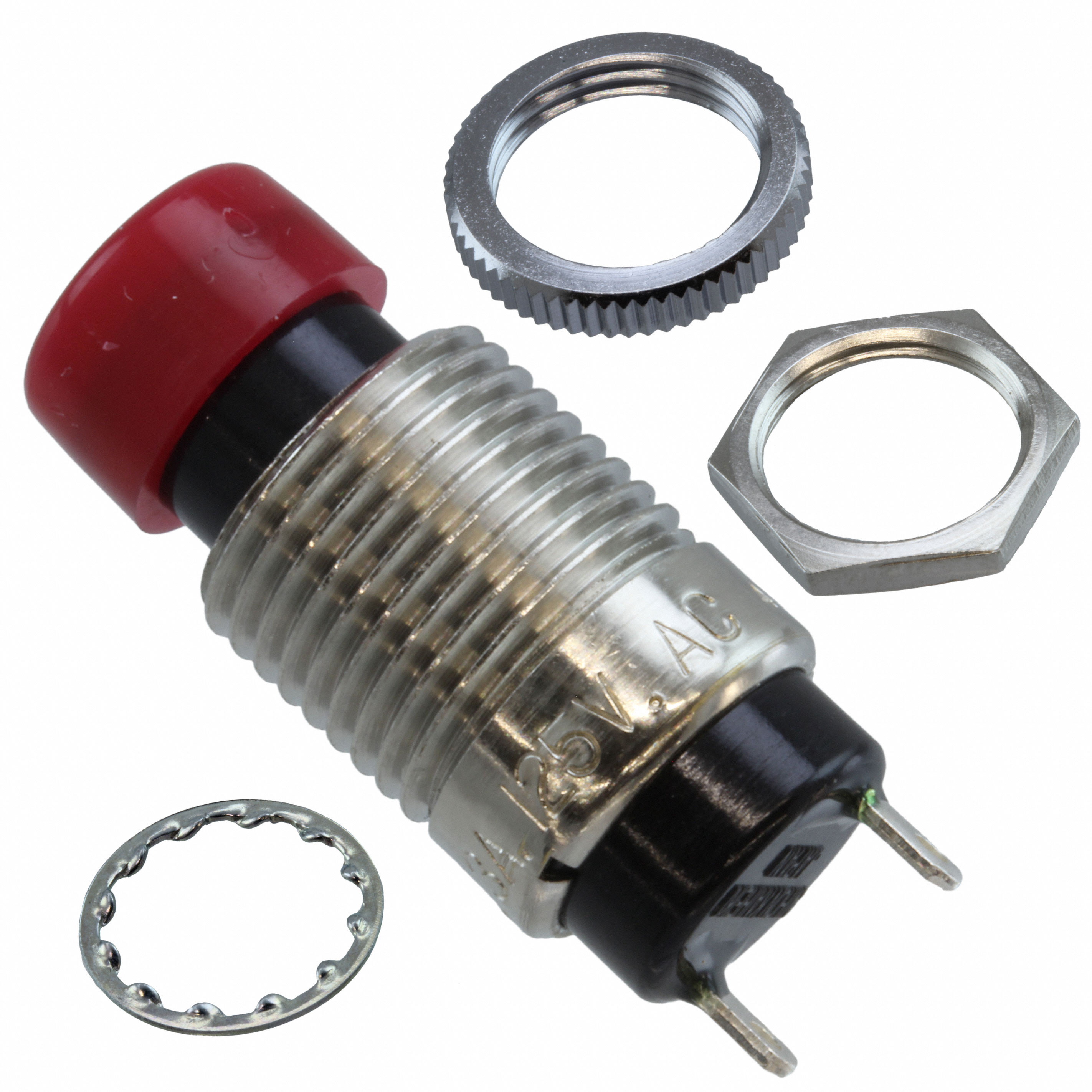

NKK Switches SB4011NOM-2C	30000 Steps	10000 Cycles	Standard	No Marking	30 V	Button Round	Solder Lug	12.5 mm	Red	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	125 V	2 A 3 A

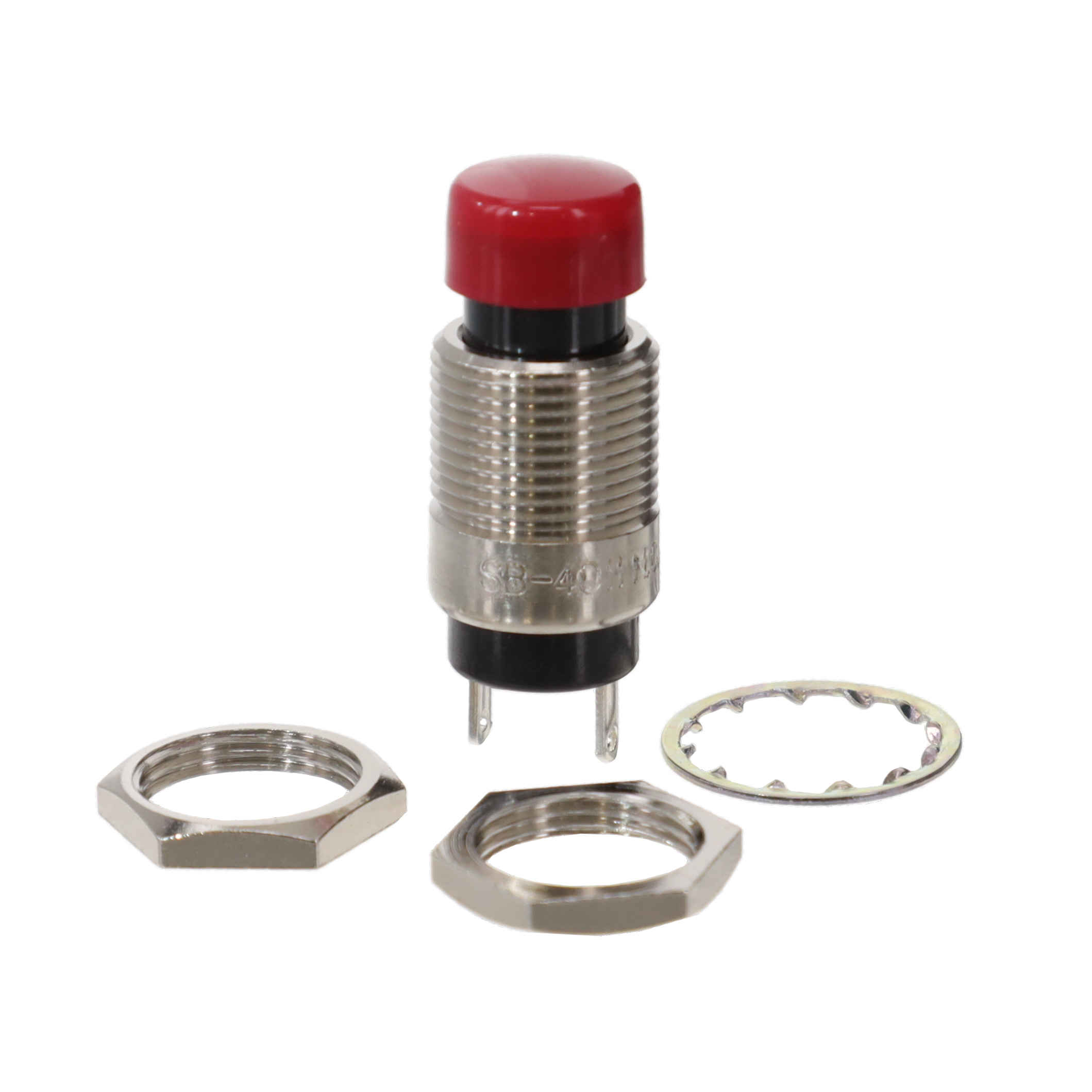

NKK Switches SB4011NCH-2C	30000 Steps	10000 Cycles	Standard	No Marking	30 V	Button Round	Solder Lug	12.5 mm	Red	Panel Mount Rear	70 °C	-10 °C	SPST-NC	On-Mom	Epoxy Sealed Terminals	125 V	2 A 3 A
NKK Switches SB4011NOM	30000 Steps	10000 Cycles	Standard	No Marking	30 V	Plunger for Cap	Solder Lug	12.5 mm	Black	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	125 V	2 A 3 A
NKK Switches SB4011NOMG-2F	30000 Steps	10000 Cycles	Standard	No Marking	28 V	Button Round	Solder Lug	12.5 mm	Green	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	28 V	0.4 VA
NKK Switches SB4011NOMG-2B	30000 Steps	10000 Cycles	Standard	No Marking	28 V	Button Round	Solder Lug	12.5 mm	White	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	28 V	0.4 VA

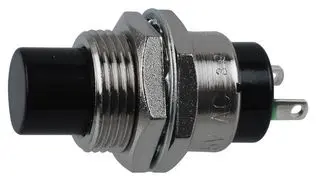

NKK Switches SB4011NOH	30000 Steps	10000 Cycles	Standard	No Marking	30 V	Plunger for Cap	Solder Lug	12.5 mm	Black	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	125 V	2 A 3 A
NKK Switches SB4011NOHG-2G	30000 Steps	10000 Cycles	Standard	No Marking	28 V	Button Round	Solder Lug	12.5 mm	Blue	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	28 V	0.4 VA
NKK Switches SB4011NOH-2E	30000 Steps	10000 Cycles	Standard	No Marking	30 V	Button Round	Solder Lug	12.5 mm	Yellow	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	125 V	2 A 3 A
NKK Switches SB4011NOMG-2C	30000 Steps	10000 Cycles	Standard	No Marking	28 V	Button Round	Solder Lug	12.5 mm	Red	Panel Mount Rear	70 °C	-10 °C	SPST-NO	Off-Mom	Epoxy Sealed Terminals	28 V	0.4 VA

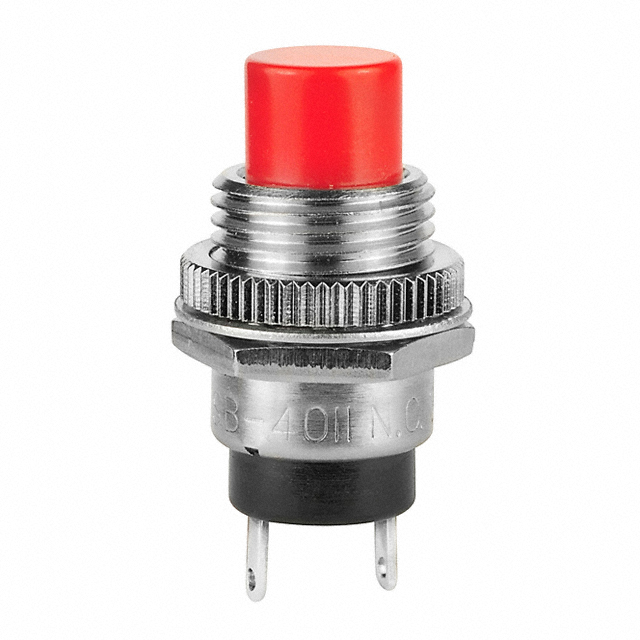

NKK Switches SB4011NCMC	30000 Steps	10000 Cycles	Standard	No Marking	30 V	Plunger for Cap	Solder Lug	12.5 mm	Red	Panel Mount Rear	70 °C	-10 °C	SPST-NC	On-Mom	Epoxy Sealed Terminals	125 V	2 A 3 A
