T326 Series

Catalog

CONN RCPT FMALE 3P SOLDER CUP

Part	Orientation	Shell Finish	Shielding	Mounting Type	Shell Material	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Primary Material	Color	Voltage Rating	Ingress Protection	Shell Size - Insert	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Feature

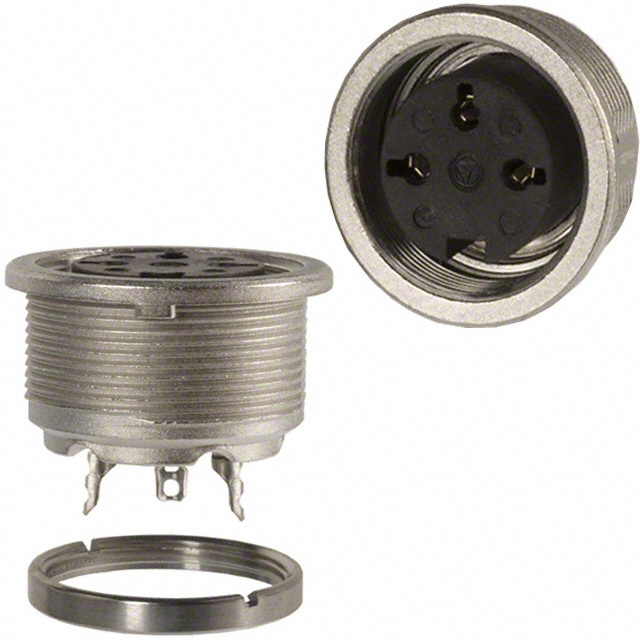

Amphenol Tuchel Industrial T3263000U	Keyed	Nickel	Shielded	Panel Mount	Die Cast	Silver	10 A	Receptacle Female Sockets	Metal	Silver	250 V	IP40	M16-3	Threaded	-40 C	100 °C

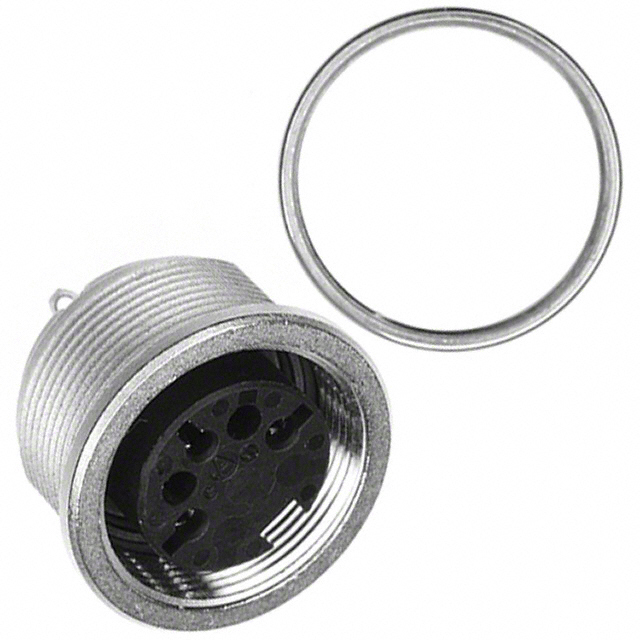

Amphenol Tuchel Industrial T3263018U	Keyed	Nickel	Shielded	Panel Mount	Die Cast	Gold	10 A	Receptacle Female Sockets	Metal	Silver	250 V	IP40	M16-3	Threaded	-40 C	100 °C

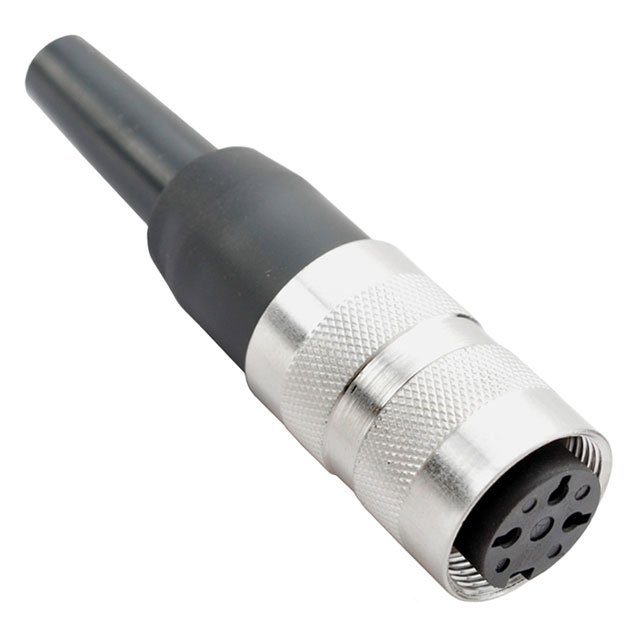

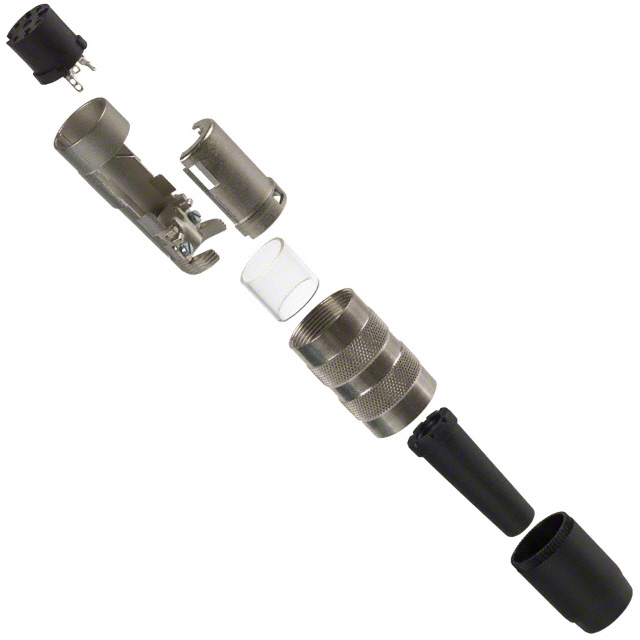

Amphenol Tuchel Industrial T3261001U	Keyed	Nickel	Shielded	Free Hanging (In-Line)	Die Cast	Silver	10 A	Plug Female Sockets	Metal	Silver	250 V	IP40	M16-3	Threaded	-40 C	100 °C	Strain Relief

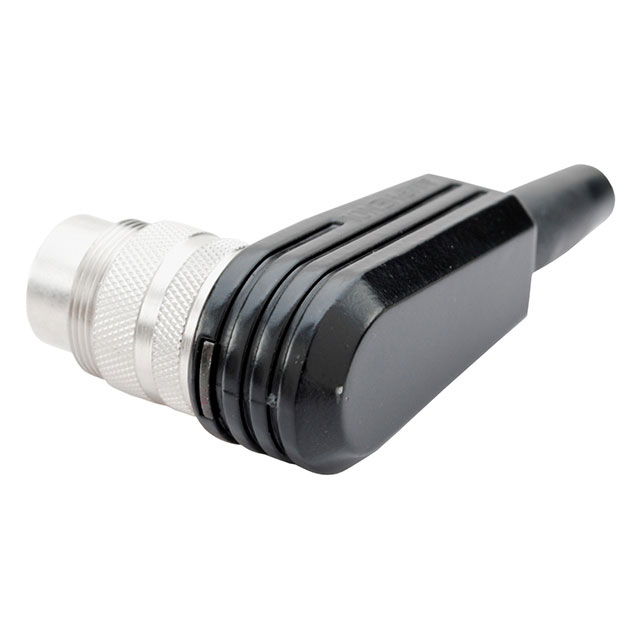

Amphenol Tuchel Industrial T3260005U	Keyed	Nickel	Shielded	Free Hanging (In-Line) Right Angle	Die Cast	Silver	10 A	Plug Male Pins	Metal	Silver	250 V	IP40	M16-3	Threaded	-40 C	100 °C	Strain Relief

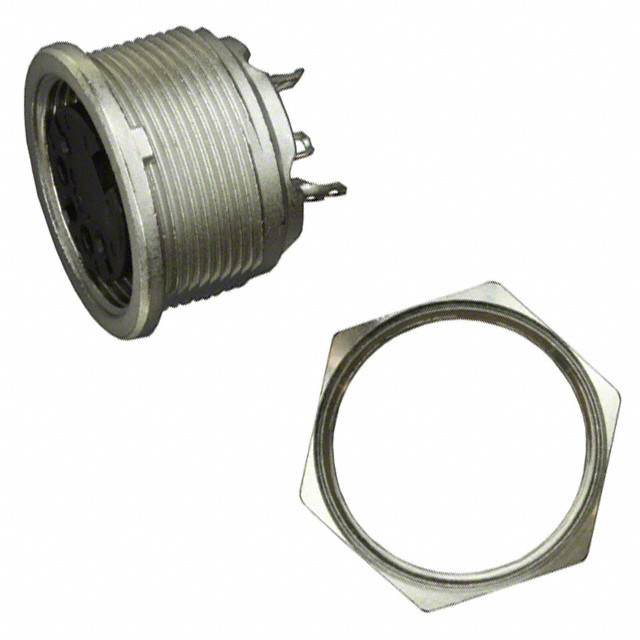

Amphenol Tuchel Industrial T3263009U	Keyed	Nickel	Shielded	Panel Mount	Die Cast	Silver	10 A	Receptacle Female Sockets	Metal	Silver	250 V	IP40	M16-3	Threaded	-40 C	100 °C		Bulkhead - Rear Side Nut
