JN2AS10M Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT MALE 10POS SOLDER CUP
| Part | Insert Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Current Rating (Amps) | Shell Material | Orientation | Shell Finish | Mounting Type | Cable Opening | Cable Opening | Shell Size - Insert | Contact Finish - Mating | Number of Positions | Primary Material | Mounting Feature | Connector Type | Ingress Protection | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

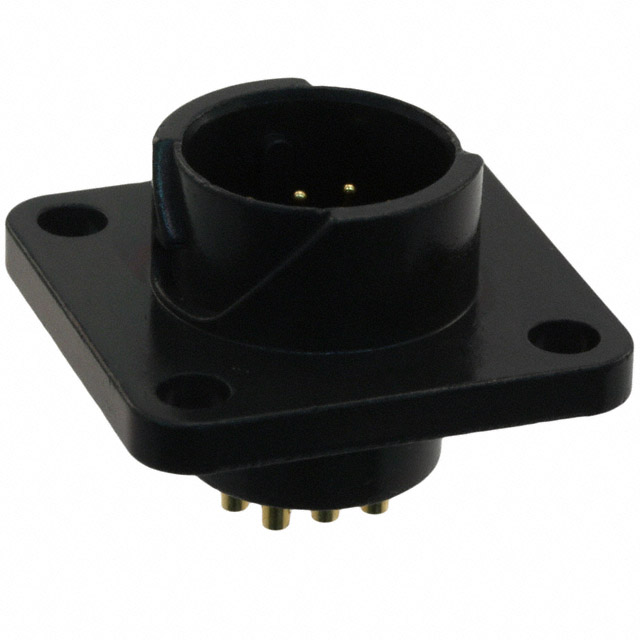

 JAE Electronics | Synthetic Resin | Copper Alloy | 3.9 µin | 0.099 µm | 200 VAC | 3 A | Zinc Alloy | N (Normal) | Zinc | Panel Mount | 12 mm | 0.472 in | S | Gold | 10 | Metal | Flange | Receptacle Male Pins | IP67 - Dust Tight Waterproof | Push-Twist | -20 ░C | 100 °C | Black |

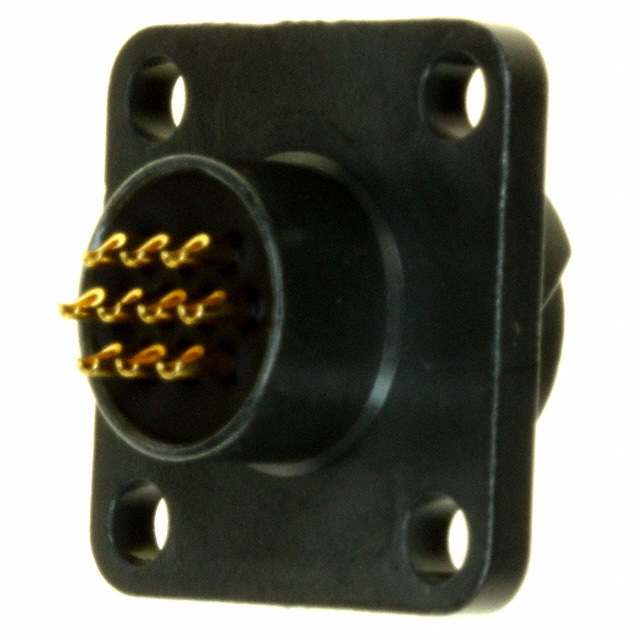

 JAE Electronics | Synthetic Resin | Copper Alloy | 3.9 µin | 0.099 µm | 200 VAC | 3 A | Zinc Alloy | N (Normal) | Zinc | Panel Mount | 12 mm | 0.472 in | S | Gold | 10 | Metal | Flange | Receptacle Male Pins | Push-Twist | -20 ░C | 100 °C | Black |
