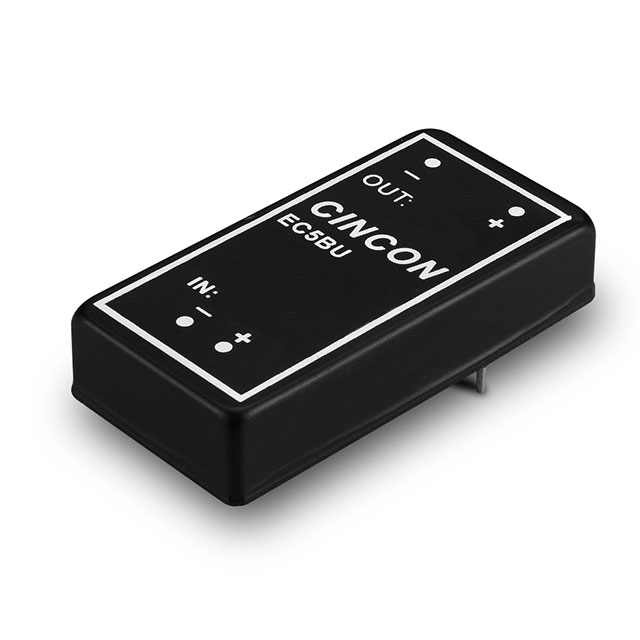

EC5BU Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
CONVERTER: DC/DC; 13W; UIN: 36÷75VDC; UOUT: 3.3VDC; 3.3V; IOUT: 4A
| Part | Voltage - Input (Min) [Min] | Power (Watts) | Current - Output (Max) [Max] | Mounting Type | Package / Case | Efficiency | Voltage - Output 1 | Size / Dimension | Applications | Voltage - Input (Max) [Max] | Standard Number | Features | Number of Outputs | Voltage - Isolation | Type | Operating Temperature [Min] | Operating Temperature [Max] | Control Features | Approval Agency | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 36 V | 13 W | 4 A | Through Hole | 6-DIP Module | 86 % | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 75 V | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | Active High Enable | CE | ||
Cincon Electronics Co. LTD | 18 V | 13 W | 4 A | Through Hole | 6-DIP Module | 86 % | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 36 V | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | Active High Enable | CE | ||
Cincon Electronics Co. LTD | 9 V | 15 W | 1.25 A | Through Hole | 6-DIP Module | 88 % | 12 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 18 V | 60950-1 | OCP OTP OVP SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | CE | |||
Cincon Electronics Co. LTD | 9 V | 15 W | Through Hole | 6-DIP Module | 88 % | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 18 V | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | 2 | 1.5 kV | Isolated Module | -40 °C | 85 °C | Active High Enable | CE | 500 mA | -15 V | |
Cincon Electronics Co. LTD | 9 V | 13 W | 4 A | Through Hole | 6-DIP Module | 85 % | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 18 V | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | Active High Enable | CE | ||
Cincon Electronics Co. LTD | 9 V | 13 W | 4 A | Through Hole | 6-DIP Module | 85 % | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 18 V | 60950-1 | OCP OTP OVP SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | CE | |||
Cincon Electronics Co. LTD | 18 V | 13 W | 4 A | Through Hole | 6-DIP Module | 86 % | 3.3 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 36 V | 60950-1 | OCP OTP OVP SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | CE | |||
Cincon Electronics Co. LTD | 36 V | 15 W | 3 A | Through Hole | 6-DIP Module | 88 % | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 75 V | 60950-1 | OCP OTP OVP SCP UVLO | 1 | 1.5 kV | Isolated Module | -40 °C | 85 °C | CE | |||
Cincon Electronics Co. LTD | 36 V | 15 W | Through Hole | 6-DIP Module | 89 % | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 75 V | 60950-1 | OCP OTP OVP SCP UVLO | 2 | 1.5 kV | Isolated Module | -40 °C | 85 °C | CE | 500 mA | -15 V | ||
Cincon Electronics Co. LTD | 36 V | 15 W | Through Hole | 6-DIP Module | 86 % | 5 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) | 75 V | 60950-1 | OCP OTP OVP SCP UVLO | 2 | 1.5 kV | Isolated Module | -40 °C | 85 °C | CE | 1.5 A | -5 V |
