MS093 Series

Catalog

RF SHIELD 0.366"X0.366" SOLDER

Part	Type	Mounting Type	Width - Overall [y]	Width - Overall	Length - Overall [x]	Length - Overall [x]	Height - Overall	Height - Overall	Ventilation	Height - Overall [z]	Height - Overall [z]	Width - Overall [y]
Masach Tech Ltd. MS093-10F	Frame	Solder	0.366 in	9.3 mm	0.366 in	9.3 mm	0.197 in	5 mm

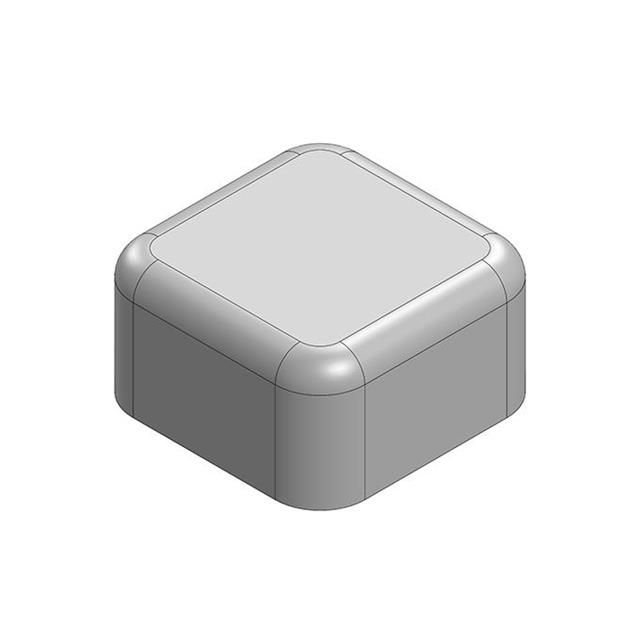

Masach Tech Ltd. MS093-10S-NS	Shield 1-Piece	Solder	0.366 in	9.3 mm	0.366 in	9.3 mm	0.197 in	5 mm	Non-Vented

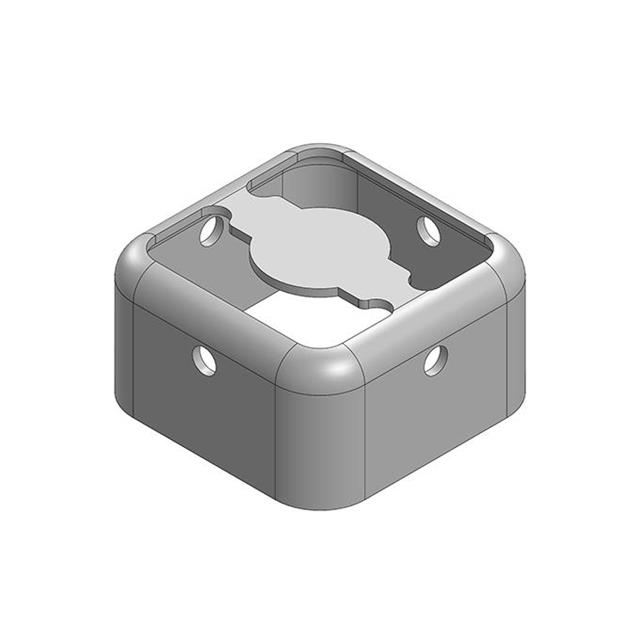

Masach Tech Ltd. MS093-10F-NS	Frame	Solder	0.366 in	9.3 mm	0.366 in	9.3 mm	0.197 in	5 mm

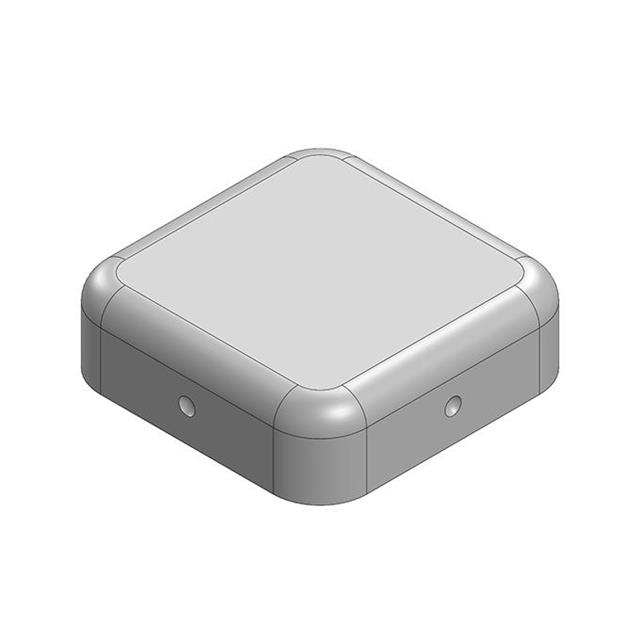

Masach Tech Ltd. MS093-10C-NS	Cover	Snap Fit	0.381 in		0.381 "	9.7 mm			Non-Vented	0.118 in	3 mm	9.7 mm
Masach Tech Ltd. MS093-10C	Cover	Snap Fit	0.381 in		0.381 "	9.7 mm			Non-Vented	0.118 in	3 mm	9.7 mm
