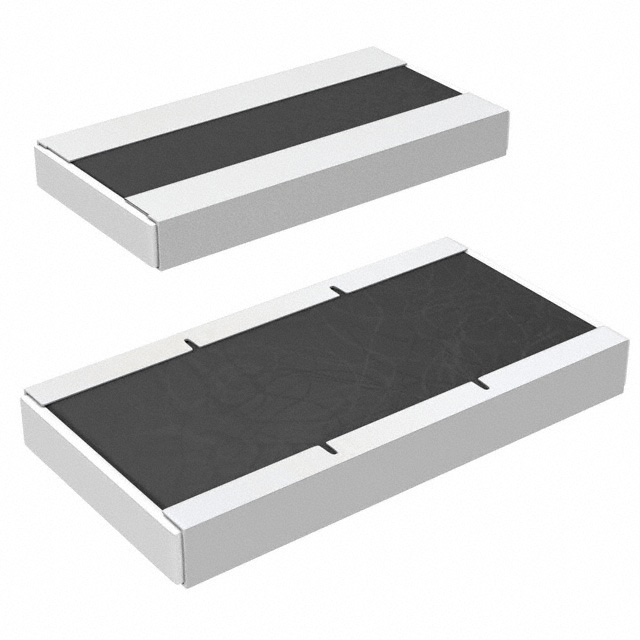

ERJ-B1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

RES SMD 160 OHM 1W 2010 WIDE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Composition	Temperature Coefficient	Features	Supplier Device Package	Resistance	Power (Watts)	Ratings
Panasonic Industrial Automation Sales ERJ-B1AJ161U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	160 Ohms	1 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1BJR27U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	270 mOhms	2 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1BJ3R9U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	3.9 Ohms	2 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1CFR11U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	1 %	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense	1020	110 mOhms	2 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1CFR18U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	1 %	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense	1020	0.18 Ohms	2 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1AJ471U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	470 Ohms	1 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1AJ150U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	15 Ohms	1 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1AJ681U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	680 Ohms	1 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1CJR056U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	56 mOhms	2 W	AEC-Q200
Panasonic Industrial Automation Sales ERJ-B1CJR10U	155 °C	-55 °C	0.197 "	5 mm	0.098 "	2.5 mm	2	1020 Wide 2010 (5025 Metric)	0.03 in	0.75 mm	5 %	Thick Film	200 ppm/°C	Automotive AEC-Q200 Current Sense	1020	0.1 Ohms	2 W	AEC-Q200
