CBG-IPXL Series
Manufacturer: Lighthorse Technologies, Inc
Beta
⌘K
CBL ASSY MHF1 LK-RPSMA JK-PL 4"
| Part | 1st Connector Mounting Feature | 2nd Connector | Cable Type | 2nd Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | 2nd Contact Gender | Overall Impedance | Features | 1st Contact Gender | Style | Color | Cable Impedance | 1st Connector | 1st Connector Mounting Type | Ingress Protection | Frequency - Max [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 101.6 mm | 4 " | Female | 50 Ohms | Locking | Male | I-PEX MHF1 LK to RP-SMA | Brown | 50 Ohms | RP-SMA Jack | Panel Mount | IP67 - Dust Tight Waterproof | 3 GHz | ||
 Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle IPEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 101.6 mm | 4 " | Female | 50 Ohms | Locking | Male | I-PEX MHF1 LK to RP-SMA | Brown | 50 Ohms | RP-SMA Jack | Panel Mount | 3 GHz | |||
 Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle IPEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 152.4 mm | 6 " | Female | 50 Ohms | Locking | Female | I-PEX MHF1 LK to SMA IPEX MHF1 LK to SMA | Brown | 50 Ohms | SMA Jack | Panel Mount | 3 GHz | |||
 Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 152.4 mm | 6 " | Female | 50 Ohms | Locking | Female | I-PEX MHF1 LK to SMA | Brown | 50 Ohms | SMA Jack | Panel Mount | IP67 - Dust Tight Waterproof | 3 GHz | ||
Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 101.6 mm | 4 " | Female | 50 Ohms | Locking | Female | I-PEX MHF1 LK to SMA | Brown | 50 Ohms | SMA Jack | Panel Mount | IP67 - Dust Tight Waterproof | 3 GHz | ||

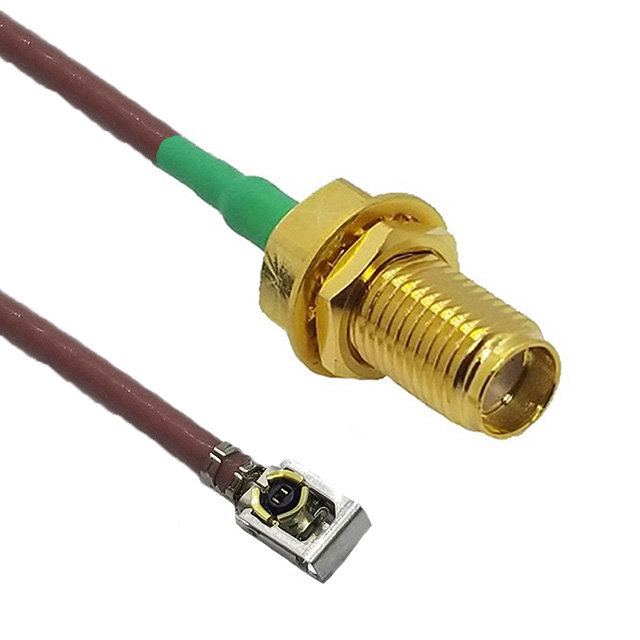

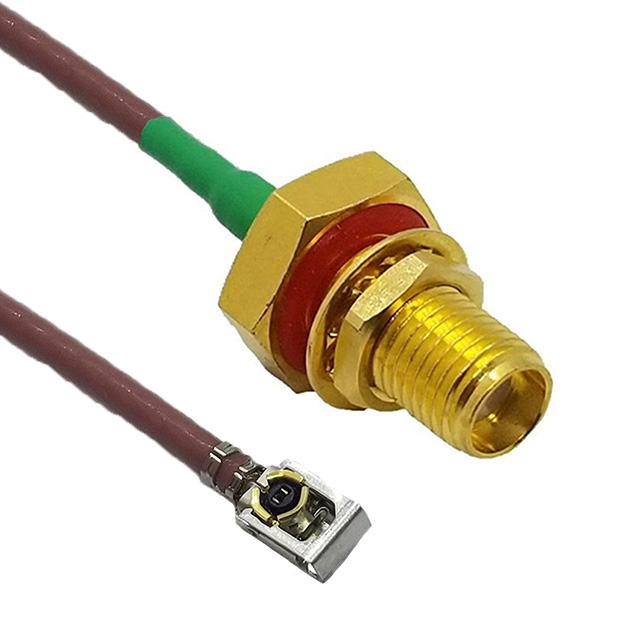

Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | Female | 50 Ohms | Locking | Female | I-PEX MHF1 LK to SMA | Brown | 50 Ohms | SMA Jack | Panel Mount | IP67 - Dust Tight Waterproof | 3 GHz | 254 mm | 10 in | ||
Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle IPEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 152.4 mm | 6 " | Female | 50 Ohms | Locking | Male | I-PEX MHF1 LK to RP-SMA | Brown | 50 Ohms | RP-SMA Jack | Panel Mount | 3 GHz | |||

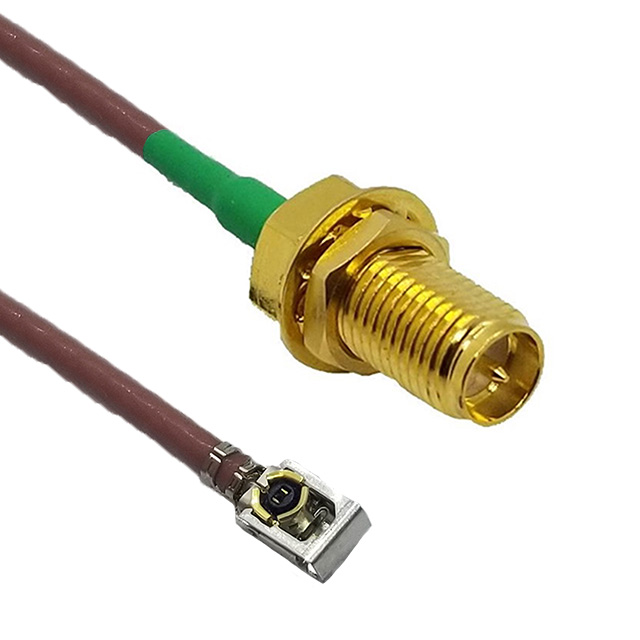

Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle IPEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | Female | 50 Ohms | Locking | Male | I-PEX MHF1 LK to RP-SMA | Brown | 50 Ohms | RP-SMA Jack | Panel Mount | 3 GHz | 254 mm | 10 in | |||
Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 152.4 mm | 6 " | Female | 50 Ohms | Locking | Male | I-PEX MHF1 LK to RP-SMA | Brown | 50 Ohms | RP-SMA Jack | Panel Mount | IP67 - Dust Tight Waterproof | 3 GHz | ||
Lighthorse Technologies, Inc | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug Right Angle IPEX MHF1 LK (Locking) Plug Right Angle | RG-178 | Free Hanging (In-Line) | 90 °C | -40 C | 101.6 mm | 4 " | Female | 50 Ohms | Locking | Female | I-PEX MHF1 LK to SMA IPEX MHF1 LK to SMA | Brown | 50 Ohms | SMA Jack | Panel Mount | 3 GHz |
