CB1.32 Series
Manufacturer: Lighthorse Technologies, Inc
Beta
⌘K

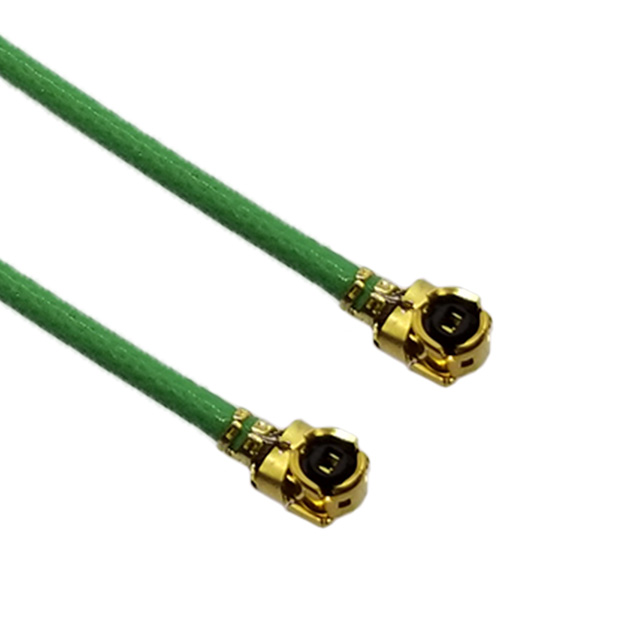

CBL ASSY IPEX MHF1 PLUG-PLG 3.5"
| Part | 1st Connector | Style | 2nd Connector | 2nd Connector Mounting Type | Frequency - Max [Max] | Features | Cable Type [diameter] | Cable Type | 2nd Contact Gender | 1st Connector Mounting Type | Color | Cable Impedance | Overall Impedance | 1st Contact Gender | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 88.9 mm | 3.5 in | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 215.9 mm | 8.5 in | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug I-PEX MHF1 Plug Right Angle Right Angle U.FL (UMCC) | I-PEX MHF1 I-PEX MHF1 to I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) I-PEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 3 in | 76.2 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 8 in | 203.2 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 11 in | 279.4 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 10.5 in | 266.7 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug I-PEX MHF1 Plug Right Angle Right Angle U.FL (UMCC) | I-PEX MHF1 I-PEX MHF1 to I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) I-PEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 7 in | 177.8 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 1 in | 25.4 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 4.5 in | 114.3 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Free Hanging (In-Line) | 9 GHz | Double Shielded Opposite Orientation | 1.32 mm | Coaxial Cable DS | Female | Free Hanging (In-Line) | Green | 50 Ohms | 50 Ohms | Female | 90 °C | -40 C | 317.5 mm | 12.5 in |
