BSB01703 Series
Manufacturer: Delta Electronics
Beta
⌘K

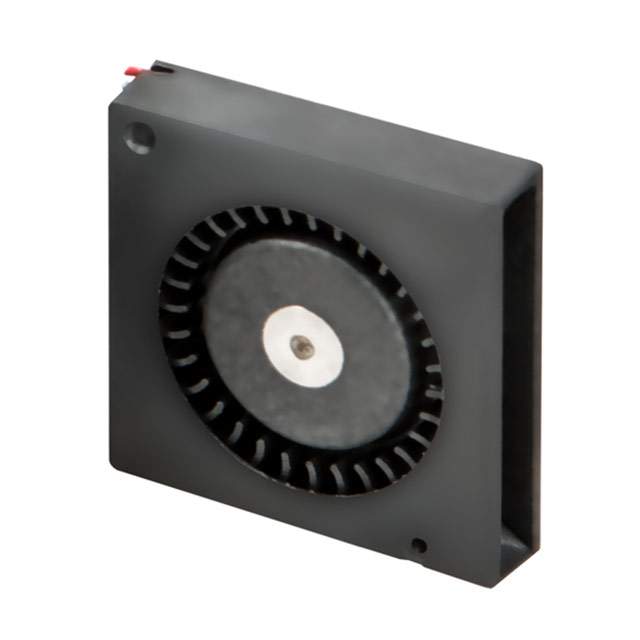

FAN BLOWER 17X3.4MM 3VDC RECT
| Part | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Material - Frame | Material - Blade | Lifetime @ Temp. | Power (Watts) | Fan Type | Termination | Features | Static Pressure | Static Pressure | RPM | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Width [x] | Voltage - Rated | Noise | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3.5 VDC | 2 V | 60 mA | Plastic | Plastic | 30000 Hrs | 180 mW | Blower | 3 Position Rectangular Connector | Locked Rotor Protection Speed Sensor (Tach) | 0.182 in H2O | 45.3 Pa | 12000 RPM | 17 mm | 17 mm | Sleeve | -10 °C | 60 °C | 0.006 m³/min | 0.23 CFM | 3.4 mm | 3 VDC | 26.5 dB | 1.36 g | 0.003 lb |
