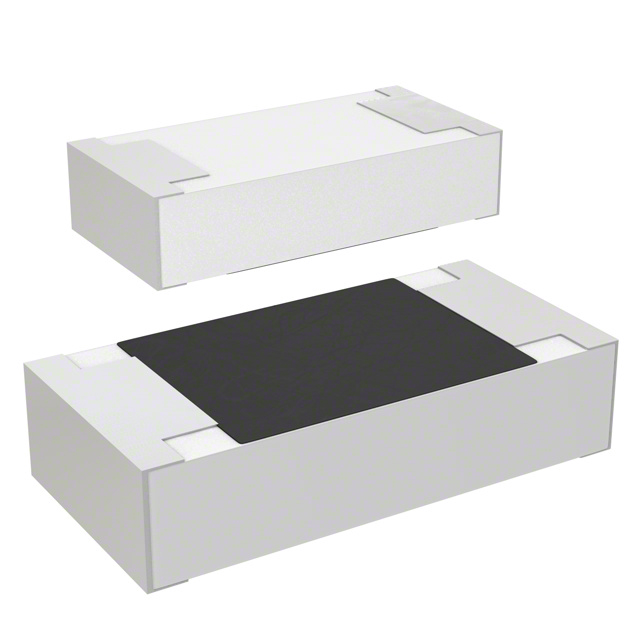

CRS2512 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RESHIGHSURGE 2512 511R 1% 2W TC100 /TAPE & REEL - 7" REEL
| Part | Power (Watts) | Supplier Device Package | Composition | Features | Tolerance | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Resistance | Number of Terminations [custom] | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 1 % | 2512 (6432 Metric) | 155 C | -55 C | 511 Ohms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 5 % | 2512 (6432 Metric) | 155 C | -55 C | 390 Ohms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | |
 Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 1 % | 2512 2512 (6432 Metric) | 155 C | -55 C | 1 MOhms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | 6332 Metric |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 1 % | 2512 2512 (6432 Metric) | 155 C | -55 C | 10000 Ohms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | 6332 Metric |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 1 % | 2512 (6432 Metric) | 155 C | -55 C | 3.9 Ohms | 2 | 200 ppm/°C | 0.03 " | 0.75 mm | |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 1 % | 2512 2512 (6432 Metric) | 155 C | -55 C | 1 Ohms | 2 | 200 ppm/°C | 0.03 " | 0.75 mm | 6332 Metric |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 5 % | 2512 (6432 Metric) | 155 C | -55 C | 2200 Ohms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 5 % | 2512 (6432 Metric) | 155 C | -55 C | 36 Ohms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 5 % | 2512 (6432 Metric) | 155 C | -55 C | 120 Ohms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm | |
Bourns Inc. | 2 W | 2512 | Thick Film | High Voltage Pulse Withstanding | 1 % | 2512 (6432 Metric) | 155 C | -55 C | 13.3 kOhms | 2 | 100 ppm/°C | 0.03 " | 0.75 mm |
