316-016 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Read Out	Number of Positions/Bay/Row	Pitch	Pitch	Contact Finish	Features	Color	Card Type	Flange Feature	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-016-420-168	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Tin	Card Guides	Green	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder

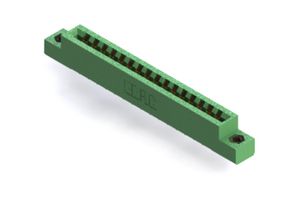

EDAC Inc. 316-016-521-107	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold		Green	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole	Solder	0.25 Ám	10 Áin
EDAC Inc. 316-016-521-112	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold		Green	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	Panel Mount Through Hole	Solder	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-016-520-178	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold	Card Guides	Green	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Solder	0.25 Ám	10 Áin
EDAC Inc. 316-016-521-108	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold		Green	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder	0.25 Ám	10 Áin
EDAC Inc. 316-016-500-102	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold		Green	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Panel Mount	Solder Eyelet(s)	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-016-521-102	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold		Green	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Through Hole	Solder	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-016-400-168	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Tin	Card Guides	Green	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)
EDAC Inc. 316-016-500-178	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold	Card Guides	Green	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)	0.25 Ám	10 Áin
EDAC Inc. 316-016-500-158	Polyester Thermoplastic	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	-40 C	105 ░C	Female	Dual	16	3.96 mm	0.156 in	Gold	Card Guides	Green	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)	0.25 Ám	10 Áin
