XZFBB55 Series

Manufacturer: SunLED

Catalog

LED BLUE CLEAR 2SMD

Part	Package / Case	Color	Wavelength - Dominant	Millicandela Rating	Supplier Device Package	Lens Color	Current - Test	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Lens Size [x]	Lens Size [y]	Mounting Type	Lens Style	Wavelength - Peak	Viewing Angle	Height (Max) [Max] [z]	Lens Size [diameter]	Height (Max) [z]
SunLED XZFBB55W-1	1206 (3016 Metric) 1206 (3216 Metric)	Blue	470 nm	178 mcd	2-SMD	Colorless	20 mA	3.3 V	Standard	1.6 mm	3.2 mm	Clear	1.9 mm	1.6 mm	Surface Mount	Rectangle with Flat Top	465 nm	120 °
SunLED XZFBB55W-3	1206 (3216 Metric)	Blue	470 nm	1195 mcd	2-SMD	Colorless	20 mA	3.3 V	Standard	1.6 mm	3.2 mm	Clear			Surface Mount	Round with Domed Top	465 nm	35 °	1.8 mm	1.6 mm
SunLED XZFBB55W-2	1206 (3216 Metric)	Blue	470 nm	178 mcd	2-SMD	Colorless	20 mA	3.3 V	Standard	1.6 mm	3.2 mm	Clear	1.4 mm	1.6 mm	Surface Mount Bottom Entry	Rectangle with Flat Top	465 nm	120 °			1.05 mm

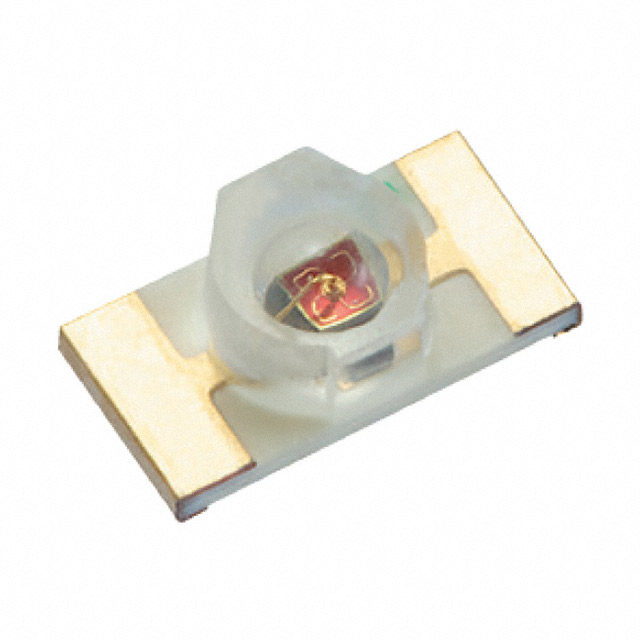

SunLED XZFBB55W-A2	1206 (3216 Metric)	Blue	470 nm	597 mcd	2-SMD	Colorless	20 mA	3.3 V	Standard	1.6 mm	3.2 mm	Clear			Surface Mount	Round with Flat Top	465 nm	70 °		1.6 mm	1.1 mm
