XQEAWT Series

Catalog

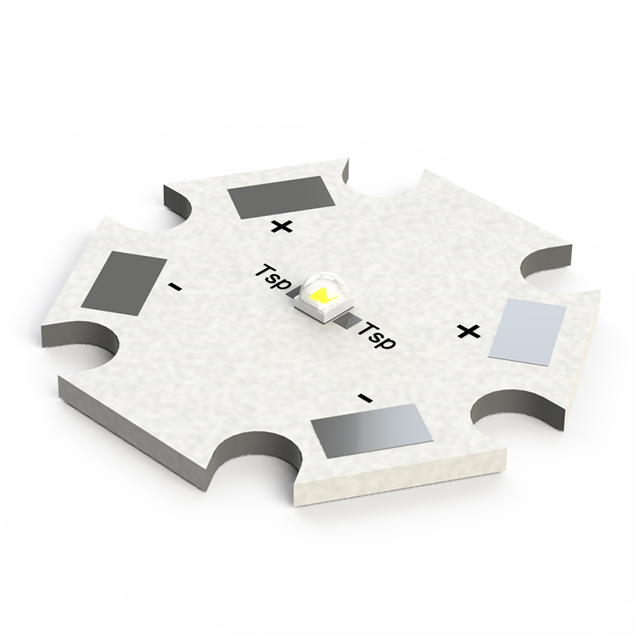

LED MOD XLAMP WHT STARBRD 6500K

Part	Size / Dimension [diameter]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	Type	Current - Max [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Current - Test	CCT (K)	CRI (Color Rendering Index)	Color	Lens Type	Temperature - Test	Lumens/Watt @ Current - Test
New Energy XQEAWT-H0-0000-00000BFE1-SB01	19.89 mm	120 °	2.9 V	Starboard	LED Module	1 A	122 lm	126 lm	130 lm	350 mA	6500 K	70	Cool White	Flat	85 °C
New Energy XQEAWT-00-0000-00000BFE1-SB01	19.89 mm	110 °	2.9 V	Starboard	LED Module	1 A		122 lm			6500 K	70	White Cool White Warm	Domed	85 °C
New Energy XQEAWT-H0-0000-00000HBE8-SB01	19.89 mm	120 °	2.9 V	Starboard	LED Module	1 A				350 mA	2700 K	80	Warm White	Flat	85 °C	96 lm/W
New Energy XQEAWT-00-0000-00000HBE8-SB01	19.89 mm	110 °	2.9 V	Starboard	LED Module	1 A				350 mA	2700 K	80	Warm White	Domed	85 °C	109 lm/W
New Energy XQEAWT-H0-0000-00000LEE5-SB01	19.89 mm	120 °	2.9 V	Starboard	LED Module	1 A				350 mA	4000 K	80	Neutral White	Flat	85 °C	109 lm/W
New Energy XQEAWT-H0-0000-00000HDE8-SB01	19.89 mm	120 °	2.9 V	Starboard	LED Module	1 A				350 mA	2700 K	80	Warm White	Flat	85 °C
New Energy XQEAWT-00-0000-00000HDE5-SB01	19.89 mm	110 °	2.9 V	Starboard	LED Module	1 A				350 mA	4000 K	75	Neutral White	Domed	85 °C	116 lm/W
