1971875 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

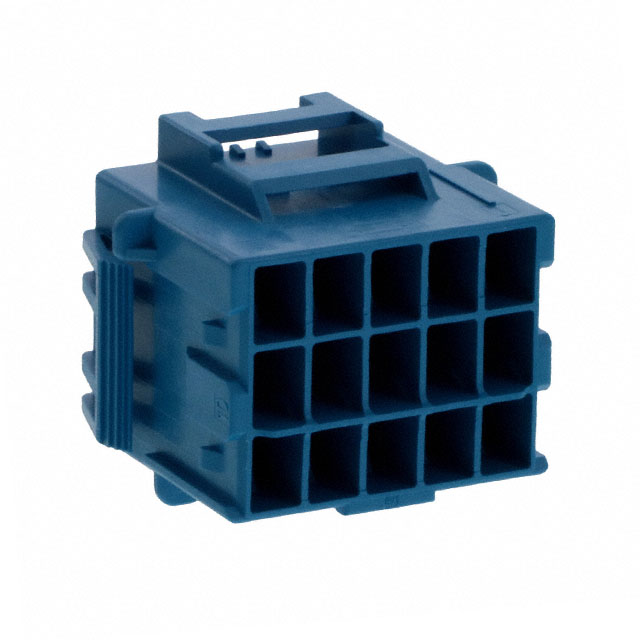

CONN RCPT HSG 15POS 6.00MM
| Part | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Mounting Type | Row Spacing | Row Spacing | Connector Type | Insulation Material | Contact Type | Note | Fastening Type | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 15 | Panel Mount Snap-In | 8.1 mm | 0.319 in | Receptacle | Polybutylene Terephthalate (PBT) | Tab | Contacts Not Included | Latch Holder | Crimp | 105 ░C | -55 °C | Blue |
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 9 | Panel Mount Snap-In | 8.1 mm | 0.319 in | Receptacle | Nylon Polyamide (PA) | Tab | Contacts Not Included | Latch Lock | Crimp | 150 °C | -55 °C | Red |

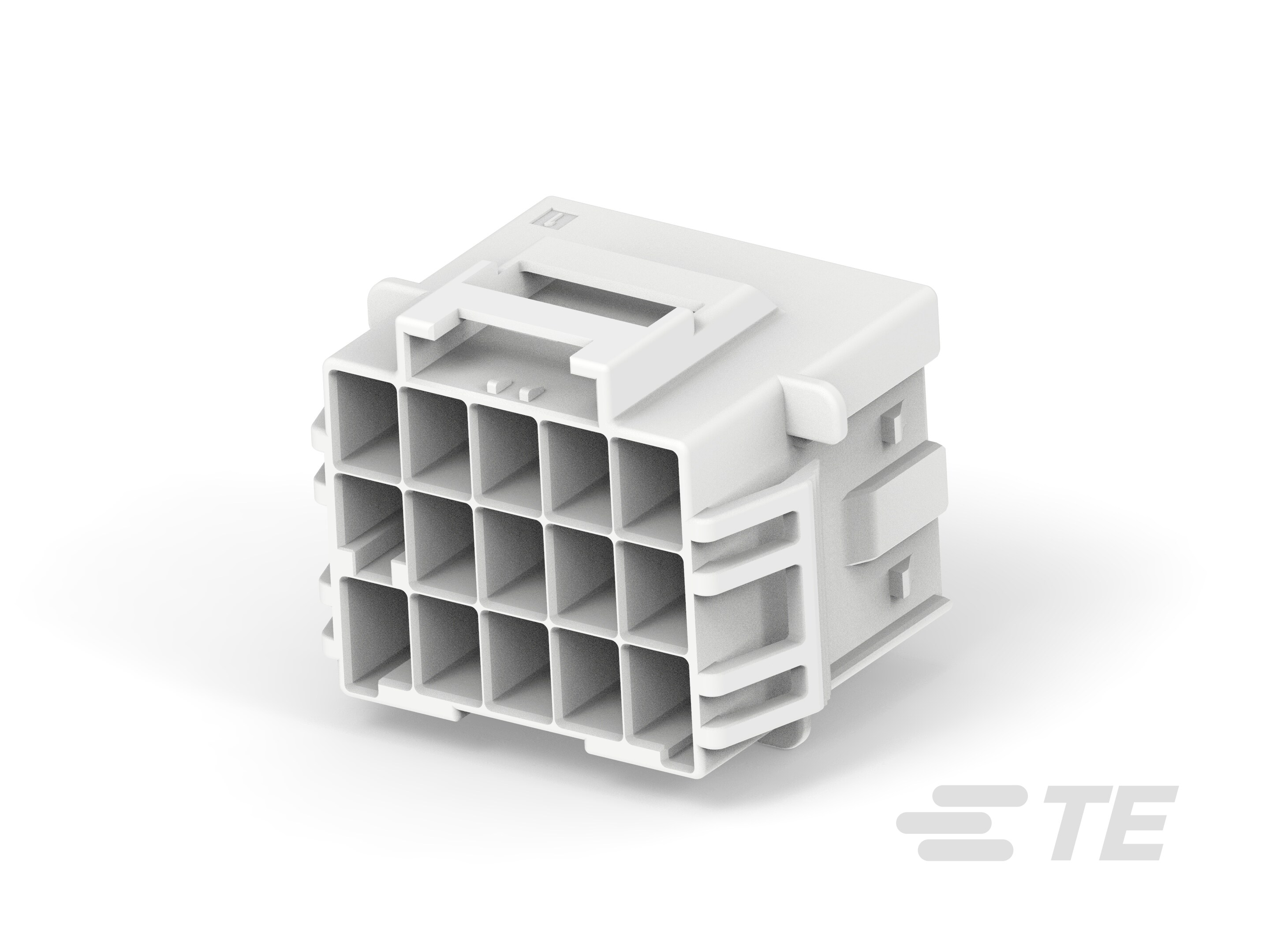

 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 15 | Panel Mount Snap-In | 8.1 mm | 0.319 in | Receptacle | Nylon Polyamide (PA) | Tab | Contacts Not Included | Latch Lock | Crimp | 150 °C | -55 °C | Natural |
 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 9 | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | Tab | Contacts Not Included | Latch Lock | Crimp | 105 ░C | -55 °C | Blue | |||
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 12 | Panel Mount Snap-In | 8.1 mm | 0.319 in | Receptacle | Nylon Polyamide (PA) | Tab | Contacts Not Included | Latch Lock | Crimp | 150 °C | -55 °C | Black |
 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 12 | Panel Mount Snap-In | 8.1 mm | 0.319 in | Receptacle | Nylon Polyamide (PA) | Tab | Contacts Not Included | Latch Lock | Crimp | 150 °C | -55 °C | Natural |
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | 3 | 9 | Panel Mount Snap-In | 8.1 mm | 0.319 in | Receptacle | Nylon Polyamide (PA) | Tab | Contacts Not Included | Latch Lock | Crimp | 150 °C | -55 °C | Natural |
