Ks0 Series Series

Single Pole Key Switch Keylock Switches Key

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Single Pole Key Switch Keylock Switches Key

Part	Termination Style	Color - Actuator/Cap	Electrical Life	Mounting Type	Features	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Switch Function	Type	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]

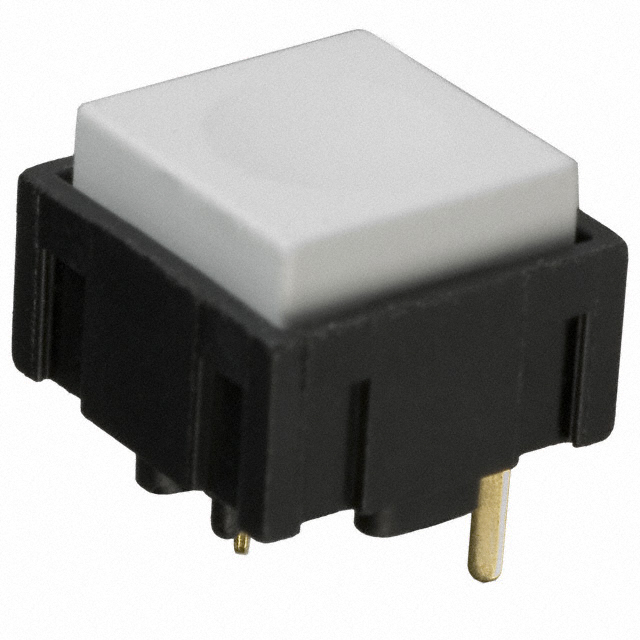

Littelfuse/Commercial Vehicle Products KS11R21CBD	PC Pin	White	100000 Cycles	Through Hole	Tactile Feedback	20 V	0.4 VA	No Marking	20 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C

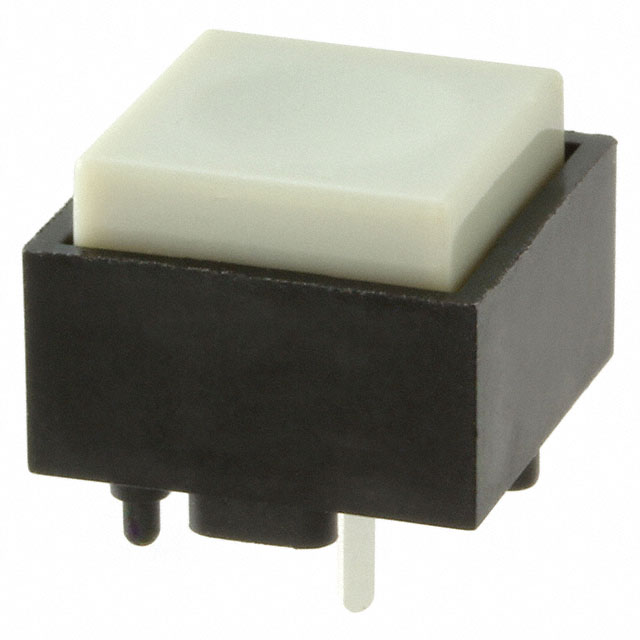

Littelfuse/Commercial Vehicle Products KS11R29CQD	PC Pin		100000 Cycles	Through Hole	Tactile Feedback	50 VDC	25 mA	No Marking	50 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products KS11R22CBE	PC Pin	Black	100000 Cycles	Through Hole	Voltage Reduction Lighting	20 V	0.4 VA	No Marking	20 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products KS11R29CBD	PC Pin		100000 Cycles	Through Hole	Tactile Feedback	20 V	0.4 VA	No Marking	20 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products KS11R29CBE	PC Pin		100000 Cycles	Through Hole	Voltage Reduction Lighting	20 V	0.4 VA	No Marking	20 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products KS12R23CQD	PC Pin	Red	100000 Cycles	Through Hole	Tactile Feedback	50 VDC	25 mA	No Marking	50 V	On-Mom	Keyswitch	Button Square	SPDT	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products KS11R21CQD	PC Pin	White	100000 Cycles	Through Hole	Tactile Feedback	50 VDC	25 mA	No Marking	50 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products KS11R22CQD	PC Pin	Black	100000 Cycles	Through Hole	Tactile Feedback	50 VDC	25 mA	No Marking	50 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C

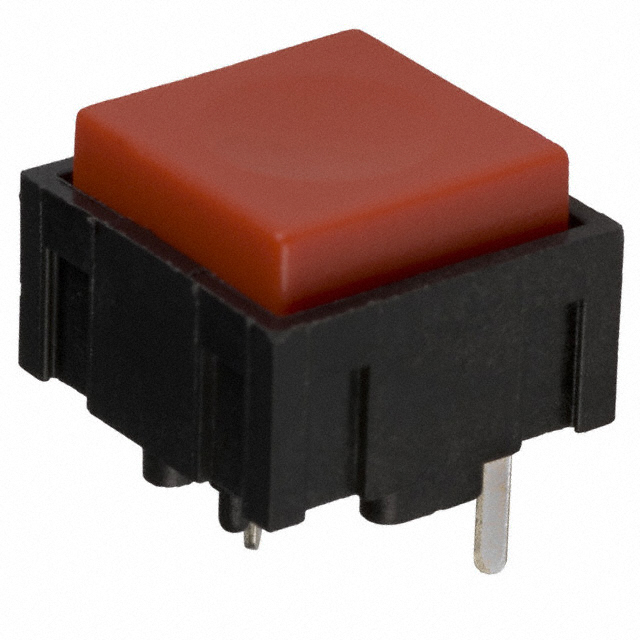

Littelfuse/Commercial Vehicle Products KS11R23CQD	PC Pin	Red	100000 Cycles	Through Hole	Tactile Feedback	50 VDC	25 mA	No Marking	50 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C

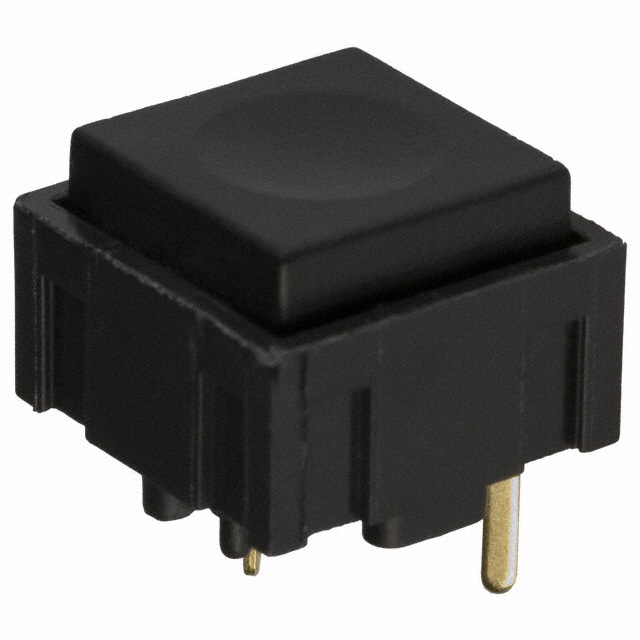

Littelfuse/Commercial Vehicle Products KS11R22CBD	PC Pin	Black	100000 Cycles	Through Hole	Tactile Feedback	20 V	0.4 VA	No Marking	20 V	Off-Mom	Keyswitch	Button Square	SPST-NO	65 °C	-30 ░C

Catalog

Single Pole Key Switch Keylock Switches Key

Key Features

• Excellent tactile feel

• Variety of cap colors

• SPST and SPDT configurations

Description

Available in a variety of cap colors and either an SPST or SPDT configuration, C&K’s KS Single Pole keyswitch is found in products throughout the instrumentation and telecommunications industries. KS keyswitches are built to meet all high-performance expectations while still retaining a consistent tactile feel for the end-user over a long period of time.
