FSA646 Series

2:1 MIPI D-PHY (2.5Gbps) 4-Data Lane Switch

Catalog

2:1 MIPI D-PHY (2.5Gbps) 4-Data Lane Switch

Part	Package / Case	Applications	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Features	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Mounting Type	Multiplexer/Demultiplexer Circuit	Switch Circuit	-3db Bandwidth

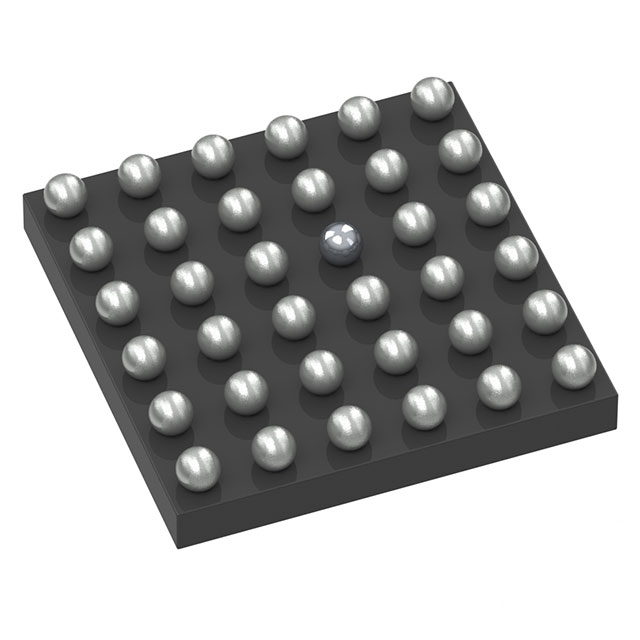

ON Semiconductor FSA646UCX	36-UFBGA WLCSP	MIPI	36-WLCSP	2.43	2.43	85 °C	-40 °C	4	Break-Before-Make	1.5 V	5 V	Surface Mount	2:1	SPDT	2.5 GHz
ON Semiconductor FSA646AUCX	36-UFBGA WLCSP	MIPI	36-WLCSP	2.43	2.43	85 °C	-40 °C	4	Break-Before-Make	1.5 V	5 V	Surface Mount	2:1	SPDT	4.7 GHz
ON Semiconductor FSA646UCX	36-UFBGA WLCSP	MIPI	36-WLCSP	2.43	2.43	85 °C	-40 °C	4	Break-Before-Make	1.5 V	5 V	Surface Mount	2:1	SPDT	2.5 GHz

Catalog

2:1 MIPI D-PHY (2.5Gbps) 4-Data Lane Switch

Key Features

• Switch Type: SPDT(10x)

• Signal Types:

• MIPI, D-PHY

• VCC: 1.5 to 5.0 V

• Input Signals: 0 to 1.3 V

• RON:

• 6 Ώ Typical HS MIPI

• 6 Ώ Typical LP MIPI

• △RON: 0.1 Ώ Typical LP & HS MIPI

• RON_FLAT: 0.9 Ω Typical LP & HS MIPI

• ICCZ:1 µA Maximum

• ICC: 15 µA Typical

• OIRR: -24 dB Typical

• Bandwidth: 2500 MHz Minimum

• CON: 1.5 pF Typical

• Xtalk: -30 dB Typical

• Skew of Opposite Transitions of the Same Output: 6 ps Typical

Description

The FSA646 is a four-data-lane MIPI, D-PHY switch. This single-pole, double-throw (SPDT) switch is optimized for switching between two high-speed or low-power MIPI sources. The FSA646 is designed for the MIPI specification and allows connection to a CSI or DSI module.
