73698 Series

Catalog

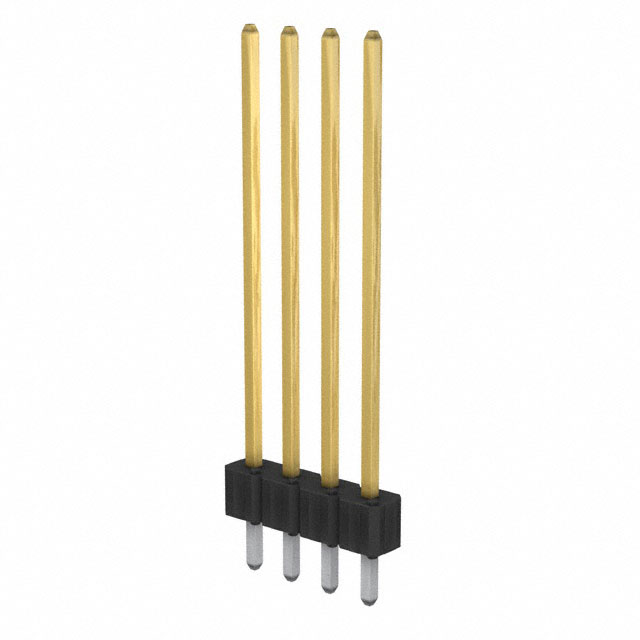

CONN HEADER VERT 4POS 2.54MM

Part	Insulation Height	Insulation Height	Fastening Type	Contact Material	Number of Rows	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Color	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Finish - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type
Amphenol ICC (FCI) 73698-204HLF	0.1 in	2.54 mm	Push-Pull	Phosphor Bronze	1	Solder	All	0.1 in	2.54 mm	Male Pin	Unshrouded	0.12 in	3.05 mm	Square	Black	1.1 in	27.94 mm	Through Hole	Gold or Gold GXT™	4	22.35 mm	0.88 in	UL94 V-0	15 µin	0.38 µm	Header
