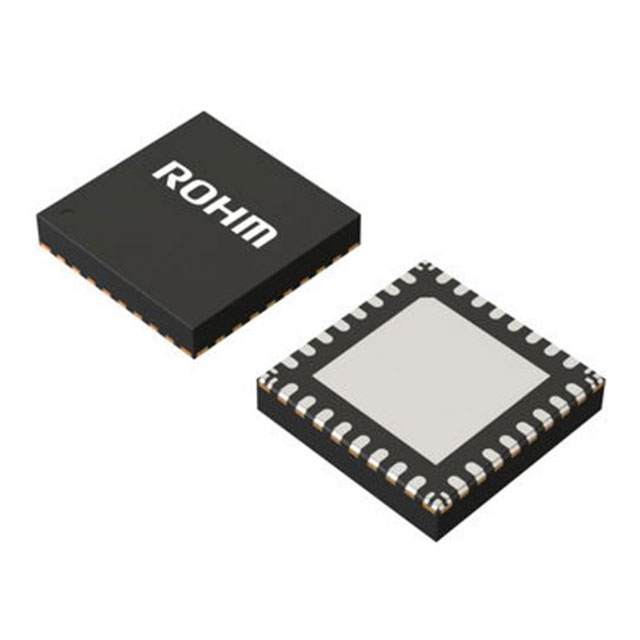

BD9P233MUF-C Series

Nano Pulse Control™, 3.0V to 36V Input, 2.0A Integrated FET Single Synchronous Quiescent Operating Current Buck DC/DC Converter for Automotive

Manufacturer: Rohm Semiconductor

Catalog

Nano Pulse Control™, 3.0V to 36V Input, 2.0A Integrated FET Single Synchronous Quiescent Operating Current Buck DC/DC Converter for Automotive

Part	Voltage - Output (Min/Fixed)	Number of Outputs	Voltage - Input (Min) [Min]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Output Configuration	Current - Output	Supplier Device Package	Function	Qualification	Synchronous Rectifier	Topology	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Input (Max) [Max]	Package / Case

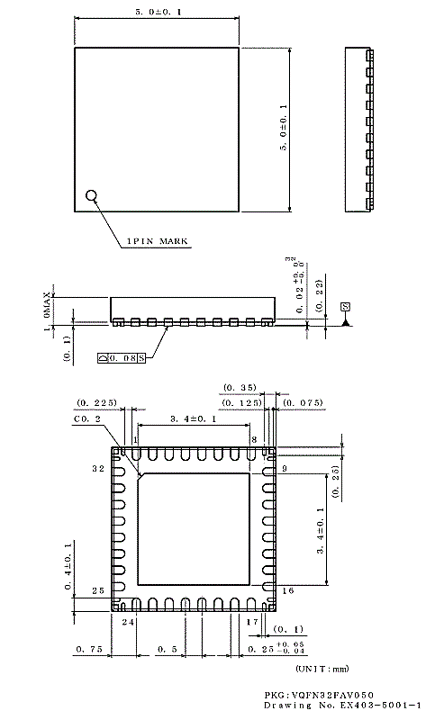

Rohm Semiconductor BD9P233MUF-CE2	3.3 V	1	3 V	1.81 mOhm	125 °C	-40 °C	Automotive	Positive	2 A	VQFN32FAV050	Step-Down	AEC-Q100		Buck	Surface Mount Wettable Flank	2.4 MHz	200 kHz	36 V	32-VFQFN Exposed Pad

Catalog

Nano Pulse Control™, 3.0V to 36V Input, 2.0A Integrated FET Single Synchronous Quiescent Operating Current Buck DC/DC Converter for Automotive

Key Features

• Nano Pulse Control™, AEC-Q100 Qualified (Grade 1), Low Dropout: 100% ON Duty Cycle, Light Load Mode (LLM), Spread Spectrum Function, Adjustable Frequency, Synchronization by External Clock, Thermal Shutdown Protection, Input Under Voltage Lockout Protection, Over Current Protection, Output Over Voltage Protection, Power Good Output

Description

BD9P233MUF-C is an ultra-low IQ Buck converter for 3.3V output. The LLM (Light Load Mode) control ensures an ultra-low quiescent current and high efficiency at light load situation as well as at high load situations while maintaining a regulated output voltage.
