kea Series

Catalog

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KEA; IP40

Part	Material Flammability Rating	Termination	Termination	Termination	Panel Thickness	Panel Thickness	Filter Type	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Mounting Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Connector Type	Connector Style	Approval Agency	Features

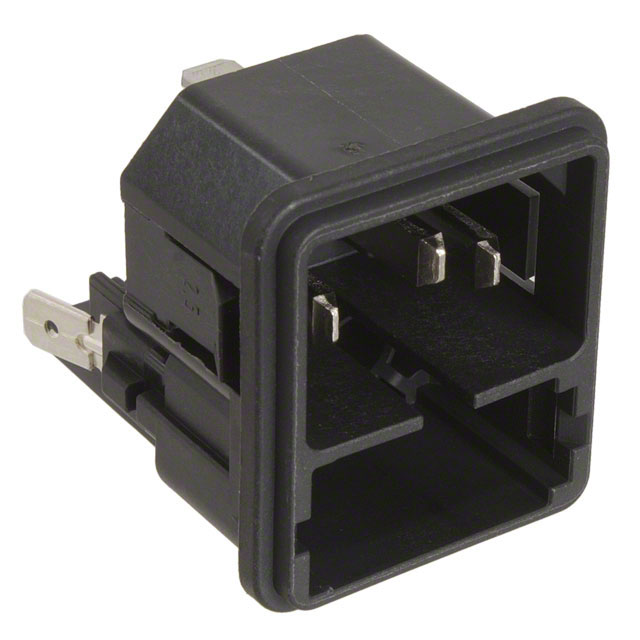

SCHURTER Inc. 4301.0504	UL94 V-0	0.189 "	4.8 mm	Quick Connect	0.098 in	2.5 mm	Unfiltered - Commercial	10 A	Fuse Holder	Panel Mount Snap-In	250 VAC	27.5 mm	31.5 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL
SCHURTER Inc. 4301.2061	UL94 V-0	0.189 "	4.8 mm	Quick Connect			Unfiltered - Commercial	10 A	Fuse Holder	Flange Panel Mount	250 VAC	27.6 mm	31.6 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL	Voltage Selector
SCHURTER Inc. 4301.2121	UL94 V-0	0.189 "	4.8 mm	Quick Connect			Unfiltered - Commercial	10 A	Fuse Holder	Flange Panel Mount	250 VAC	27.6 mm	31.6 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL	Voltage Selector
SCHURTER Inc. 4301.3204	UL94 V-0			Solder	0.098 in	2.5 mm	Unfiltered - Commercial	10 A	Fuse Holder	Panel Mount Right Angle Snap-In Through Hole	250 VAC	27.6 mm	31.6 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL
SCHURTER Inc. 4301.2041	UL94 V-0	0.189 "	4.8 mm	Quick Connect			Unfiltered - Commercial	10 A	Fuse Holder	Flange Panel Mount	250 VAC	27.5 mm	31.5 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL	Front or Rear Side Mount V-Lock Notch Voltage Selector
SCHURTER Inc. 4301.0003	UL94 V-0	0.189 "	4.8 mm	Quick Connect	0.079 in	2 mm	Unfiltered - Commercial	10 A	Fuse Holder	Panel Mount Snap-In	250 VAC	27.5 mm	31.5 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL	Voltage Selector
SCHURTER Inc. 4301.2062	UL94 V-0	0.189 "	4.8 mm	Quick Connect	0.059 in	1.5 mm	Unfiltered - Commercial	10 A	Fuse Holder	Panel Mount Snap-In	250 VAC	27.6 mm	31.6 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL	Voltage Selector

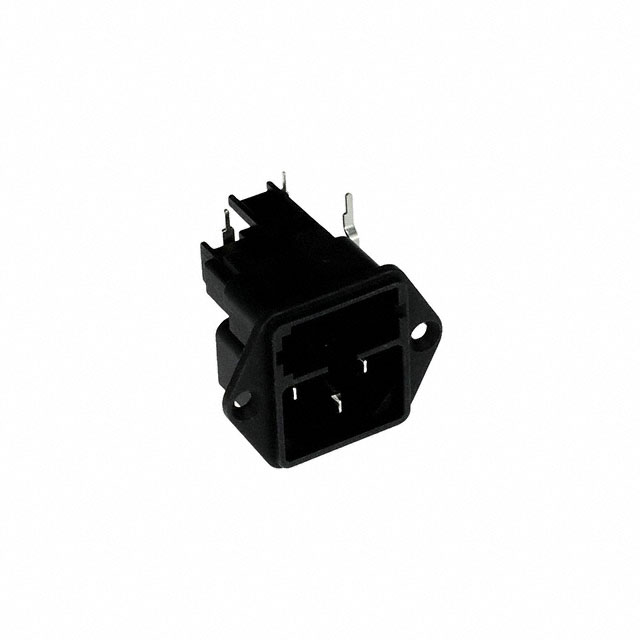

SCHURTER Inc. 4301.3211	UL94 V-0			Solder	0.315 in	8 mm	Unfiltered - Commercial	10 A	Fuse Holder	Panel Mount Flange Through Hole Right Angle	250 VAC	27.6 mm	31.6 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	CCC CSA ENEC UL
