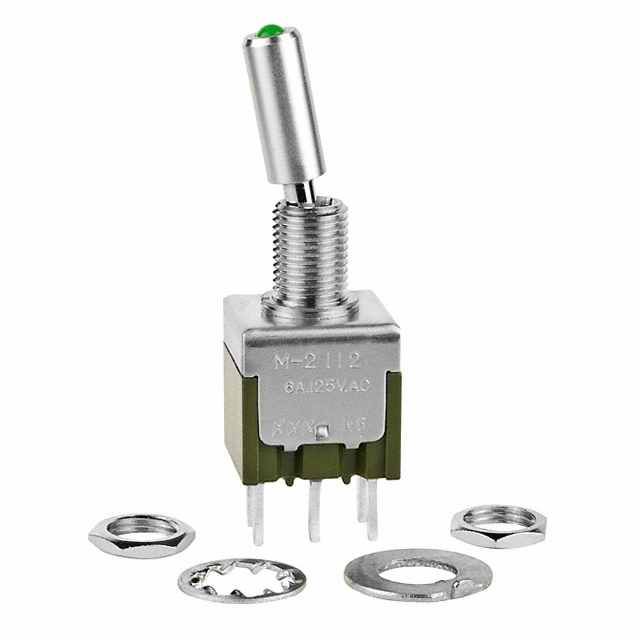

M2112TF Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Length [x] | Mounting Type | Bushing Thread | Circuit | Termination Style | Voltage Rating - AC | Switch Function | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Actuator Type | Current Rating (Amps) | Illumination Type, Color | Features | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 14.7 mm | Panel Mount | 1/4-40 | SPDT | Solder Lug | 125 V | On-On | Illuminated | 55 °C | -10 °C | 30 V | 6.5 mm | Standard Round | 3 A 6 A | Green LED | Epoxy Sealed Terminals | 2.2 VDC |
 NKK Switches | 25000 Steps | 14.7 mm | Panel Mount | 1/4-40 | SPDT | Quick Connect - 0.062" (1.5mm) | 125 V | On-On | Illuminated | 55 °C | -10 °C | 30 V | 6.5 mm | Standard Round | 3 A 6 A | Green LED | Epoxy Sealed Terminals | 2.2 VDC |
