NCP707 Series

LDO Regulator, 200 mA, Ultra-Low Iq, High PSRR, Low Noise

Catalog

LDO Regulator, 200 mA, Ultra-Low Iq, High PSRR, Low Noise

Part	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Supplier Device Package	Voltage - Input (Max) [Max]	Output Type	Package / Case	Current - Quiescent (Iq)	Protection Features	Number of Regulators	Voltage - Output (Min/Fixed)	Output Configuration	Mounting Type	Current - Output	Current - Supply (Max) [Max]	PSRR [Max]	PSRR [Min]
ON Semiconductor NCP707AMX280TCG	0.175 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	2.8 V	Positive	Surface Mount	200 mA
ON Semiconductor NCP707CMX300TBG	0.165 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1		Positive	Surface Mount	200 mA	240 µA

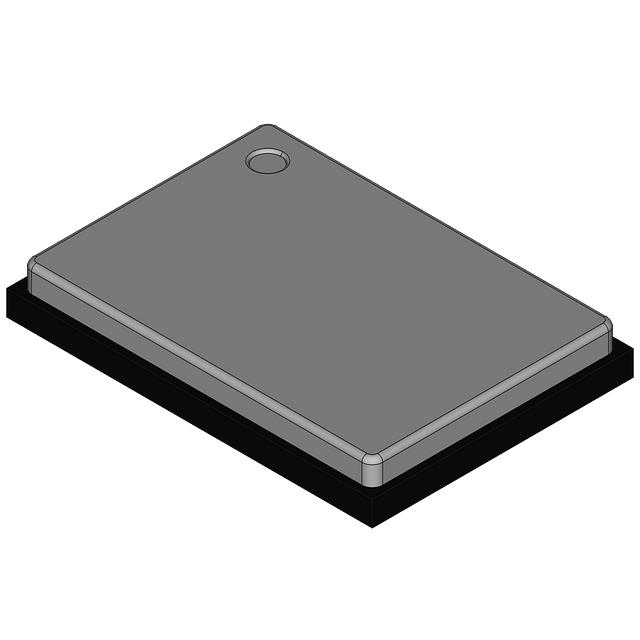

ON Semiconductor NCP707CMX310TCG	0.16 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	3.1 V	Positive	Surface Mount	200 mA		70 dB	55 dB
ON Semiconductor NCP707CMX180TCG	0.38 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	1.8 V	Positive	Surface Mount	200 mA
ON Semiconductor NCP707CMX280TCG	0.175 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	2.8 V	Positive	Surface Mount	200 mA
ON Semiconductor NCP707BMX185TCG	0.37 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	1.85 V	Positive	Surface Mount	200 mA
ON Semiconductor NCP707CMX150TCG		125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	1.5 V	Positive	Surface Mount	200 mA
ON Semiconductor NCP707AMX300TCG	0.165 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1		Positive	Surface Mount	200 mA
ON Semiconductor NCP707BMX330TCG	0.15 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	3.3 V	Positive	Surface Mount	200 mA
ON Semiconductor NCP707AMX330TCG	0.15 V	125 °C	-40 °C	Enable	4-XDFN (1x1)	5.5 V	1.81 mOhm	4-XDFN Exposed Pad	35 µA	Over Current Over Temperature	1	3.3 V	Positive	Surface Mount	200 mA

Catalog

LDO Regulator, 200 mA, Ultra-Low Iq, High PSRR, Low Noise

Key Features

• Operating Input Voltage Range: 1.8V to 5.5V

• Ultra-Low Output Noise: Typ. 22µVrms

• Very-Low Quiescent Current: Typ. 25µA

• High Ripple Rejection Ratio: Typ. 70dB @ 1kHz

• Fixed Voltage Options from 1.5V to 3.3V

• Very Low Dropout: Typ. 120 mV @ 200 mA

• ±2% Accuracy Over Load/Line/Temperature

• Thermal Shutdown and Current Limit Protections

• Available in XDFN 1.0 x 1.0 mm Package

• Options With/Without Active Discharge are available

Description

The NCP707 is 200mA LDO that provides the engineer with a very stable, accurate voltage with very-low noise suitable for space constrained, noise sensitive applications. In order to optimize the performance for battery operated portable applications, the NCP707 employs the dynamic quiescent current adjustment for very-low IQconsumption at no-load.
