DML-08 Series

Manufacturer: Adam Tech

Catalog

CONN WIRE TO BOARD HDR 8 POS 3MM SOLDER ST THRU-HOLE

Part	Termination	Number of Positions	Contact Material	Current Rating (Amps)	Material Flammability Rating	Contact Type	Style	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Color	Voltage Rating	Mounting Type	Number of Positions Loaded	Features	Contact Shape	Fastening Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height

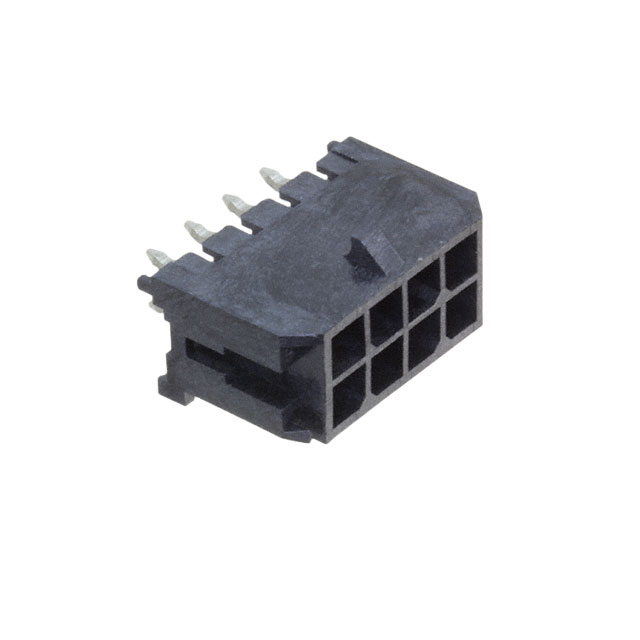

Adam Tech DML-08-A-V-T-A	Kinked Pin Solder	8	Brass	Varies by Wire Gauge	UL94 V-0	Male Pin	Board to Cable/Wire	0.39 in	9.91 mm	0.125 in	3.18 mm	0.118 in	3 mm	Shrouded - 4 Wall	Black	250 V	Through Hole	All	Board Guide	Square	Locking Ramp	Tin	3 mm	0.118 in	2	Thermoplastic	Header	-45 °C	125 °C

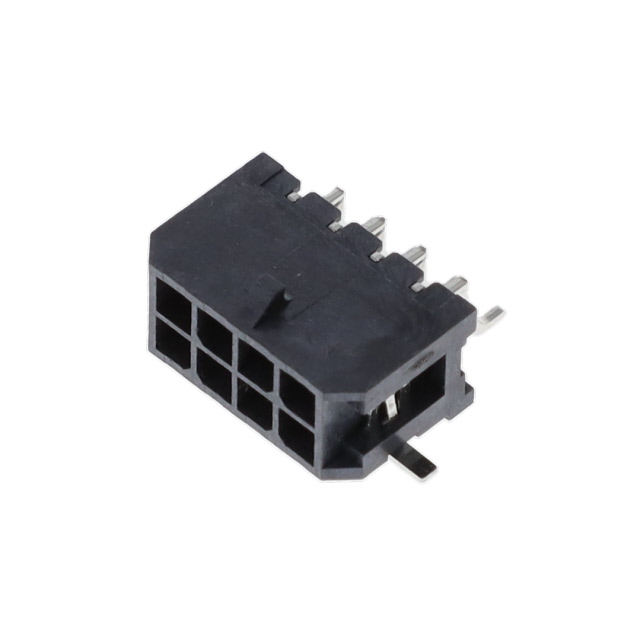

Adam Tech DML-08-A-H-T-A-TSMT-T/R	Solder	8	Brass		UL94 V-0	Male Pin	Board to Cable/Wire	0.289 "				0.118 in	3 mm	Shrouded - 4 Wall	Natural	250 VAC	Right Angle Surface Mount	All	Solder Retention	Square	Locking Ramp	Tin	3 mm	0.118 in	2	Thermoplastic	Header	-25 °C	85 °C	7.34 mm	5 A

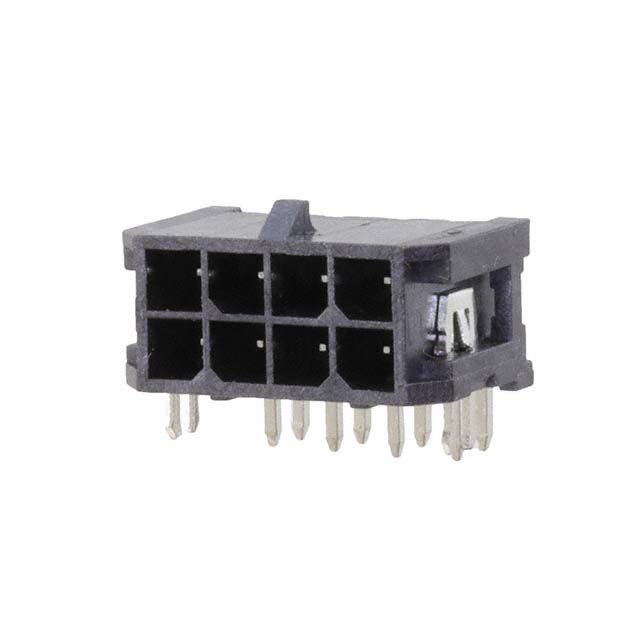

Adam Tech DML-08-A-H-T-A-SBL	Solder	8	Brass	Varies by Wire Gauge	UL94 V-0	Male Pin	Board to Cable/Wire					0.118 in	3 mm	Shrouded - 4 Wall	Black	250 V	Right Angle Through Hole	All	Board Lock	Square	Locking Ramp	Tin	3 mm	0.118 in	2	Thermoplastic	Header			7.37 mm		0.126 "	3.2 mm	0.29 in

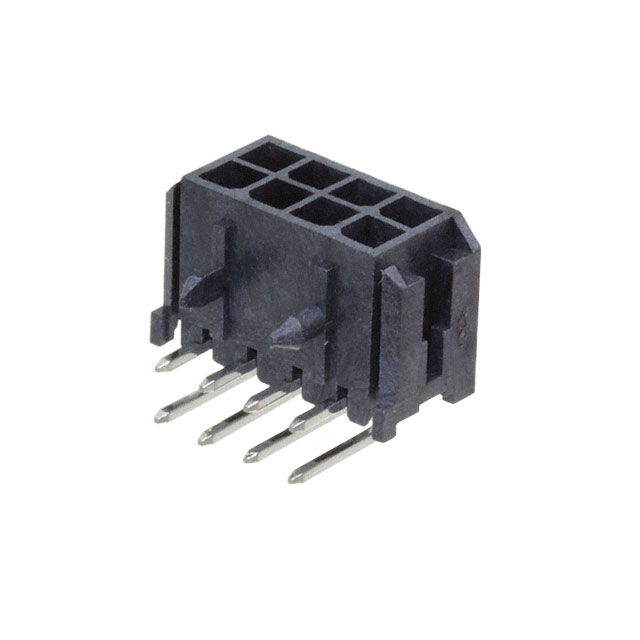

Adam Tech DML-08-A-H-T-A	Solder	8	Brass	Varies by Wire Gauge	UL94 V-0	Male Pin	Board to Cable/Wire	0.27 in	6.86 mm	0.125 in	3.18 mm	0.118 in	3 mm	Shrouded - 4 Wall	Black	250 V	Right Angle Through Hole	All	Board Lock	Square	Locking Ramp	Tin	3 mm	0.118 in	2	Thermoplastic	Header
