SPHRD2 Series

Catalog

LED LH351H DEEP RED 638NM

Part	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Temperature - Test	Voltage - Forward (Vf) (Typ)	Wavelength [Min]	Wavelength	Wavelength [Max]	Viewing Angle	Current - Max [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Test	Supplier Device Package	Package / Case

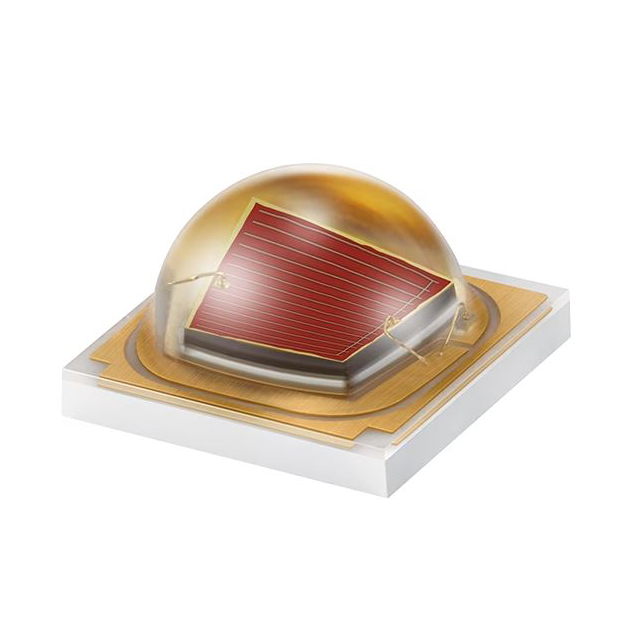

Samsung Semiconductor, Inc. SPHRD2L3DH20E7W41J	3 °C/W	0.138 in	0.138 in	3.5 mm	3.5 mm	Red	25 °C	2.2 V	650 nm	660 nm	670 nm	130 °	1 A	Surface Mount	0.081 in	2.05 mm
Samsung Semiconductor, Inc. SPHRD2L3DH00D5W4M0		0.138 in	0.138 in	3.5 mm	3.5 mm	Red	25 °C	2.2 V	650 nm	660 nm	670 nm	120 °	1 A	Surface Mount	0.086 in	2.19 mm	350 mA	3535	1414 (3535 Metric)
Samsung Semiconductor, Inc. SPHRD2L3DH01A844B0		0.138 in	0.138 in	3.5 mm	3.5 mm	Red	25 °C	1.9 V	720 nm	730 nm	740 nm	120 °	1 A	Surface Mount	0.086 in	2.19 mm	350 mA	3535	1414 (3535 Metric)
